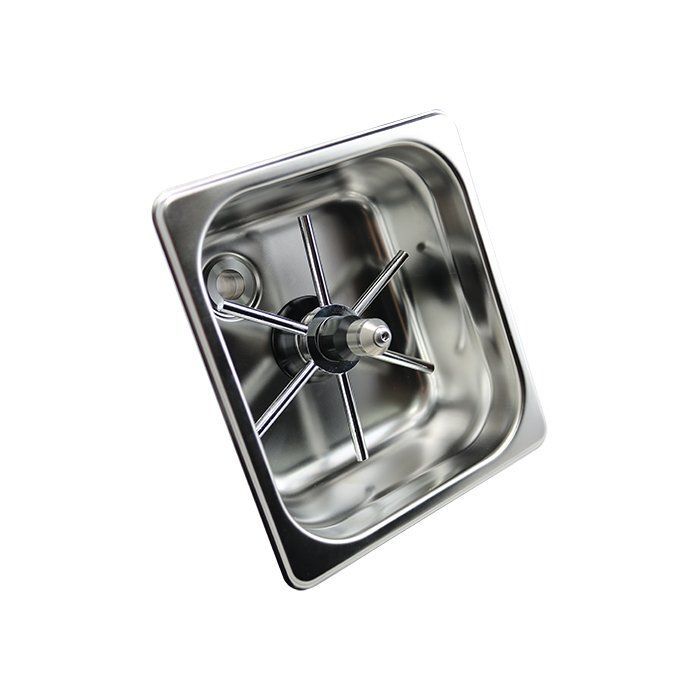

The Rhino Square Spinjet Pitcher Rinser has been specially designed to fit into the benches of cafes, bars, and other hospitality environments. At 150mm in length, this model (RHPR150-S) is the most compact pitcher rinser Rhino has to offer and is a perfect option for smaller commercial facilities. This design features a new actuator star design and a Rhino Spinjet Valve which sprays and spins at the same time for a super effective clean.

Technical Specifications:

• 304 Stainless Steel Construction
• NSF Certified
• Dimensions (W x L x D) - 175 x 159 x 62mm approx. (depth with fittings: 110mm)
• Drain hose size: 25mm/1" (not included)
• Flow Rate: 120L/H approx.

What's in the box:

• 1 x Sink
• 1 x Spinjet Spray Mechanism with Actuator Star
• 1 x John Guest Hose Adapter
• 1 x Drain Outlet

Depth Requirements:

• The supplier recommends at least 150mm of clearance under the bench for a basic connection (this includes fall for the drain hose). The actual depth may differ depending on the location of the drain, the location of the water supply, and whether you use an elbow or a straight connector.

Supplier's Installation Notes:

• Due to slight variations in manufacturing design and varying requirements of bench materials, it is strongly recommended to have the physical pitcher rinser on hand prior to cutting into benchtop surfaces. The supplier does not take responsibility for installation cut error and provides the sizes and dimensions as a layout guide only.
• It is recommended that a Pressure Limiting Valve (PLV - also known as a Pressure Restricting Valve or Water Pressure Regulator) isused when installing on mains water line.
