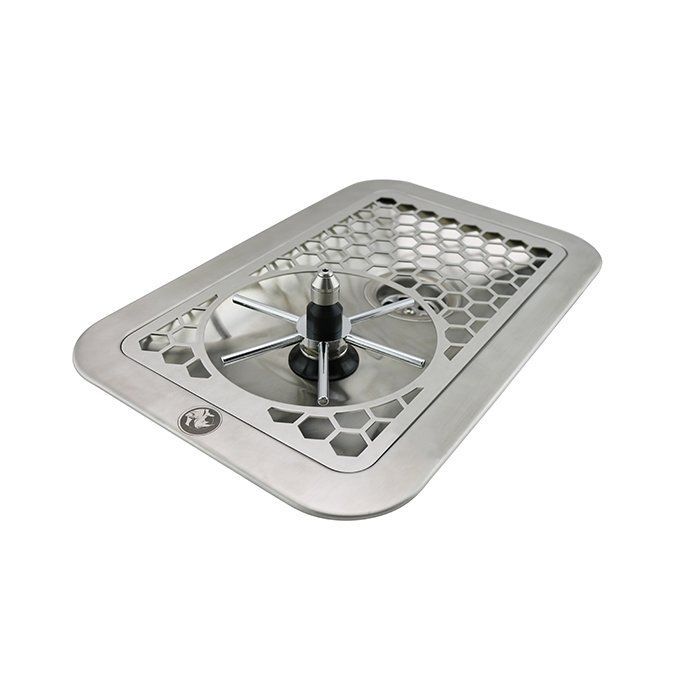

The Rhino Coffee Gear RHPR300-S has been designed to fit in the bench of cafes, restaurants, coffee bars, and juice bars. This vessel rinser features a new honeycomb drain tray and a new Actuator Star design, which both help to prevent liquid build-up. It also includes a Rhino Spinjet Valve which sprays and spins at the same time for an effective clean. Sitting at 300mm in length, the RHPR300-S fits multiple milk pitchers comfortably, making it perfect for all busy hospitality environments.

Features:

• The Spinjet Valve sprays and spins at the same time creating a more robust mechanical cleaning action than regular rinsing valves. It is ideal for plungers using tea leaves, stubborn coffee grounds, milk, and other residues that can often be difficult to clean.
• The honeycomb grate design minimises the surface area of the drain tray, reducing the static build-up of liquids and making cleaning easy. The low profile body is optimally sloped and angled to ensure effective removal of liquids, reducing common odours caused by static waste. A large drain outlet and a wide grate-free opening near the drain creates a convenient location to quickly discard larger volumes of liquid.
• The Actuator Star diameter allows both small and larger vessels to be cleaned easily. An ideal add-on for blender jugs and other larger vessels is the Blender Adapter Kit. This kit includes an extension rod and a larger actuator to suit plungers, milkshake cups, and popular blender jugs such as Blendtec and Vitamix.

Technical Specifications:

• 304 Stainless Steel Construction
• NSF Certified
• Dimensions (W x L x D) - 231 x 354 x 85mm approx. (depth from drain elbow to top of the bench)
• Drain hose size: 25mm/1" (not included)
• Flow Rate: 120L/H approx.

What's in the box:

• 1 x Sink
• 1 x Spinjet Spray Mechanism with Actuator Star
• 1 x Hexagon Grate Drip Tray
• 1 x John Guest Hose Adapter (Drain hose not included)

Depth Requirements:

• Depth Requirements: The Rhino rinsers are 40mm deep, however, this is without fittings. We recommend at least 150mm of clearance under the bench for basic connection (this includes fall for the drain hose). The actual depth may differ depending on the location of the drain, the location of the water supply, or whether you use an elbow or a straight connector.

Supplier's Installation Notes:

• Due to slight variations in manufacturing design and varying requirements of bench materials, it is strongly recommended to have the physical pitcher rinser on hand prior to cutting into benchtop surfaces. The supplier does not take responsibility for installation cut error and provides the sizes and dimensions as a layout guide only.
• It is recommended that a Pressure Limiting Valve (PLV - also known as a Pressure Restricting Valve or Water Pressure Regulator) isused when installing on mains water line.
