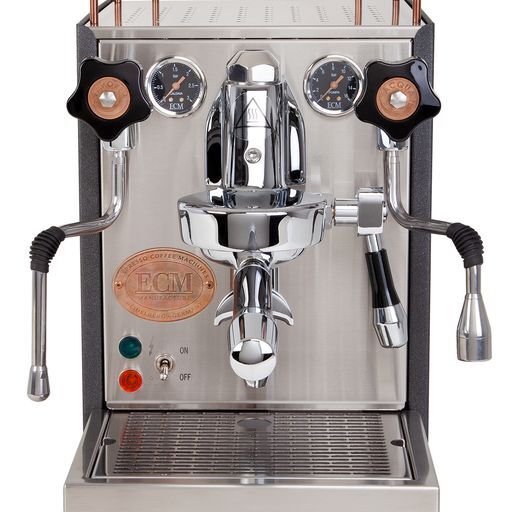

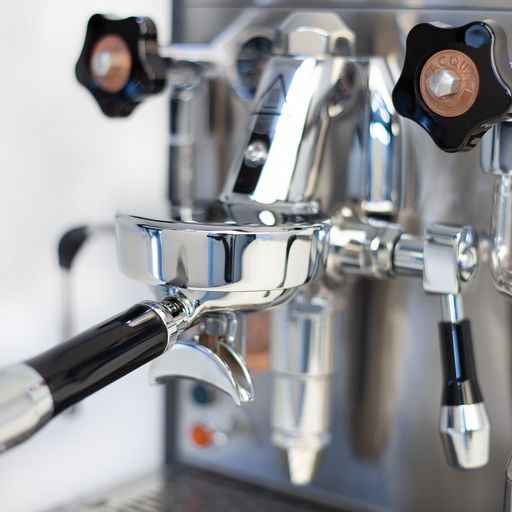

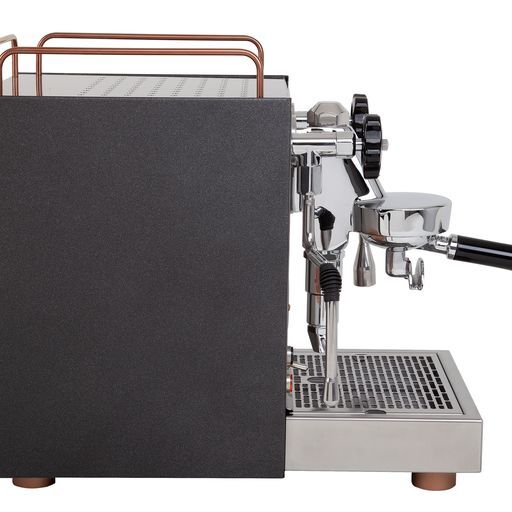

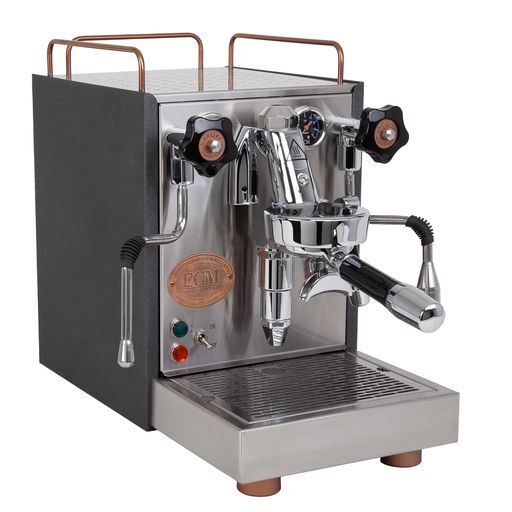

ECM Mechanika VI Slim Heritage Line

ECM's small allrounder in a compact design

Very compact design
High-end ECM brew group with innovative stainless steel bell
Large stainless steel boiler (2.2 l)
Easy access to the water tank due to removable cup warming tray
2 ergonomic ECM portafilters with weight-balanced shape and angled grip
Easy access to the expansion valve for an individual brew pressure adjustment

Included Accessories:

Single Spout Portafilter
Dual Spout Portafilter
Single & Double Filter Baskets
Blind Filter
Tamper
Group Cleaning Brush
User Manual

Must Have:

The E61 Flow Control Device allows you to adjust the flow of water in your brew group to manually profile your extractions. This custom component is a stainless steel needle valve, which allows the user to vary the amount of water flowing through the group. Variable flow control allows for lengthy pre-infusion for more even saturation and extraction of your espresso.

Similar to Profitec's existing mushroom, the flow control device is made from stainless steel to resist corrosion. The resulting changes in pressure are reflected by an included gauge which installs on the front of the group. The E61 Flow Control Device can be installed on any Profitec Espresso machine with an E61 brew group.

Technical data

ECM brew group	●
Ring brew group
Water tank	approx. 2.8 l
Boiler volume	approx. 2.2 l
Copper boiler
Stainless steel boiler	●
Brass boiler
Boiler pressure gauge	●
Pump pressure gauge	●
PID control	●
Programmable dosing
Vibration pump	●
Rotary pump
Water tank/direct water supply switchover
Rotary valve technology	●
Lever valve technology
Removable cup warming tray	●
ECM portafilter(s)	● angled grip
Number portafilter(s)	2
Weight	20.2 kg
Measurements (without portafilter) w x d x h	250 x 445 x 395 mm

Others Also Browsed

Profitec Pro 500 PID

Profitec Pro 400

Ascaso Dream PID

What size tamper will I need for this machine?

The nominal tamper size for this machine is 58mm, however you will get the best fit in your machine's basket by purchasing a 58.55mm PreciseFit tamper.

Country of origin

Germany

(69986)

Please refer to our Warranty Policy.

SKU	69986
Nominal tamper size	58mm
Ideal tamper size	58.55mm
Barcode #	4260013824789
Brand	ECM Manufacture
Shipping Weight	23.7000kg
Shipping Width	0.600m
Shipping Height	0.600m
Shipping Length	0.400m
Unit Of Measure	ea
Heat up time	15-30 Minutes
Number of Groups	1 Group
Height	36cm-39cm
Pump	Vibration
Temperature Control	Pressurestat
Heating System	HX
Width	Less than 25cm
Steam Valve Type	Crushless
Brew Group	e61
Pressure Profiling	No
Water Supply	Internal Tank Only
Volumetric	Semi-Automatic
Built-in Grinder	No
Country of origin	Germany
