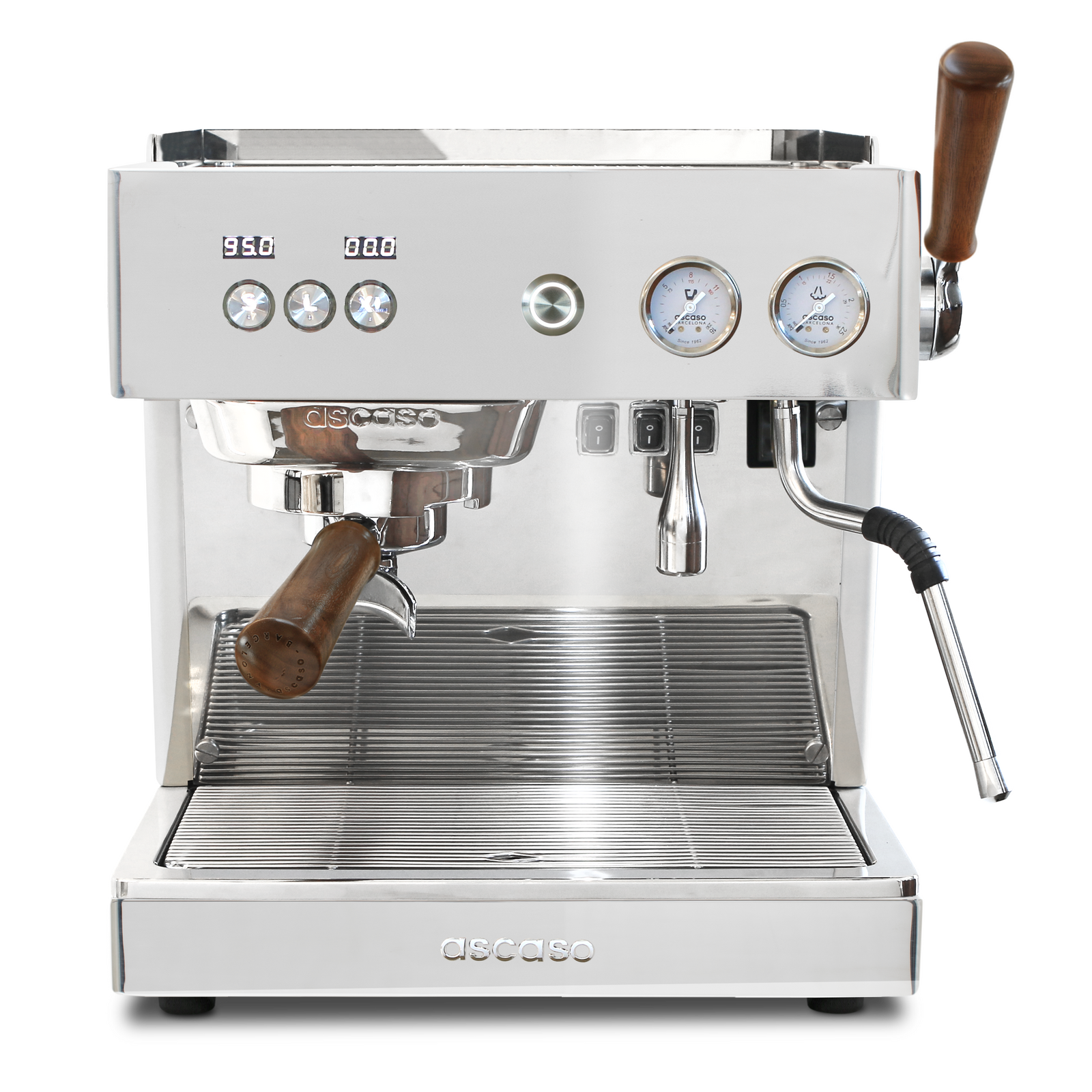

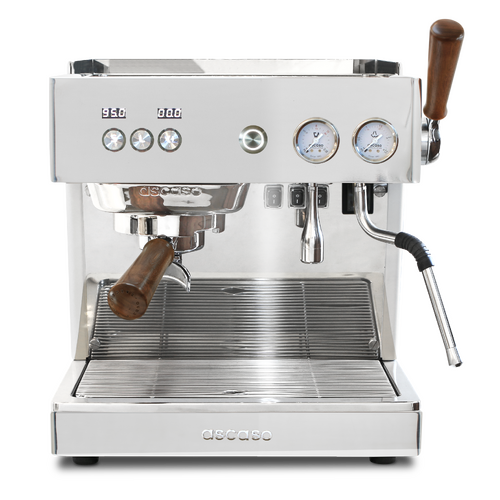

The Ascaso Baby T was born from the Barista T in a move to bring Ascaso's commercial line to consumer. The Baby T contains all the same features and technology as the Barista T in a much smaller package, allowing for top quality extraction wherever you need it – Hospitality, Catering, Coffee Shops, Food Trucks, Offices, Boutiques.... And of course, at home!

The Baby T is extremely temperature stable with a heating system that functions similarly to a heat exchanger but with a few key differences. The brew water drawn from the tank through the steam boiler, where it heats to a temperature of 80°C, before passing through a thermodynamic group that heats your brew the rest of the way. This system guarantees always clean and fresh water at a constant and precise temperature (+ - 0.5ºC), whether you're pulling one shot or fifty!

Ascaso is the first coffee machine brand to fully embrace the new European standards of metals used in the manufacturing process. With a stainless-steel boiler, element, chassis and pump, this machine offers superior mechanical resistance and scale build-up prevention, as well as minimal metal migration to the final beverage.

Features:

• Professional Thermodynamic Group.
• Independent steam boiler. Stainless steel Aisi 316. Extremely sturdy. Large capacity. (2,5 L)
• External Pid control (0,1ºC) for coffee group and (1ºC) steam boiler.
• External timer in coffee group.
• Digital Display in each group. Multiple functions. Total control.
• Dose Volumetric control. 5 selections
• Thermal stability (+- 1,5ºC Zero / +- 0,5ºC Plus).
• Energy efficient (-50%).
• Powerful steamer (12 mm anti-lime scale tube. Stainless Steel. Cool touch).
• High-precision filters in AISI 304 stainless steel.
• Designed for baristas: joystick steam controls, LED in work area, 5 volume selections, Pid controls…
• Hot water by solenoid valve
• Accessories in wood

Technical Specs:

• APP Control (iOS & Android)
• PID-display for the individual temperature adjustment of both steam and brew
• Coffee Temperature PID Control (0,1ºc precision)
• Steam temperature PId Control (1ºc precision)
• Pre-infusion - 100% adjustable (0.1s precision)
• 58mm brew-group
• Cool touch no burn steam wand
• Rotary pump
• volumetric dosing
• Barista Lights
• Stainless heating element
• Boiler and pump pressure gauges
• Steam and hot water boiler in stainless steel with a 2.5L volume
• Separate on and off switches for both steam boiler and brew head
• Switchable from water tank to fixed water connection
• Water tank with a 2L volume and water tank connector
• Automatic shut-off by way of low water volume sensor
• Cup warming tray
• Voltage 230V
• Current 10A
• Weight 35 kg
• Dimensions W x D x H: 350 x 430 x 450 mm

Included Accessories:

• Single Spout Portafilter with Wooden Handle
• Dual Spout Portafilter with Wooden Handle
• Filter 1 coffee (7gr)
• Filter 2 Coffee (14gr)
• Filter 1 coffee Super Cream (7gr)
• Filter 2 Coffee Super Cream (14gr)
• Blind Filter
• Aluminium Coffee Tamper

CATALOGUE | BROCHURE | USER MANUAL

Country of origin

Spain
