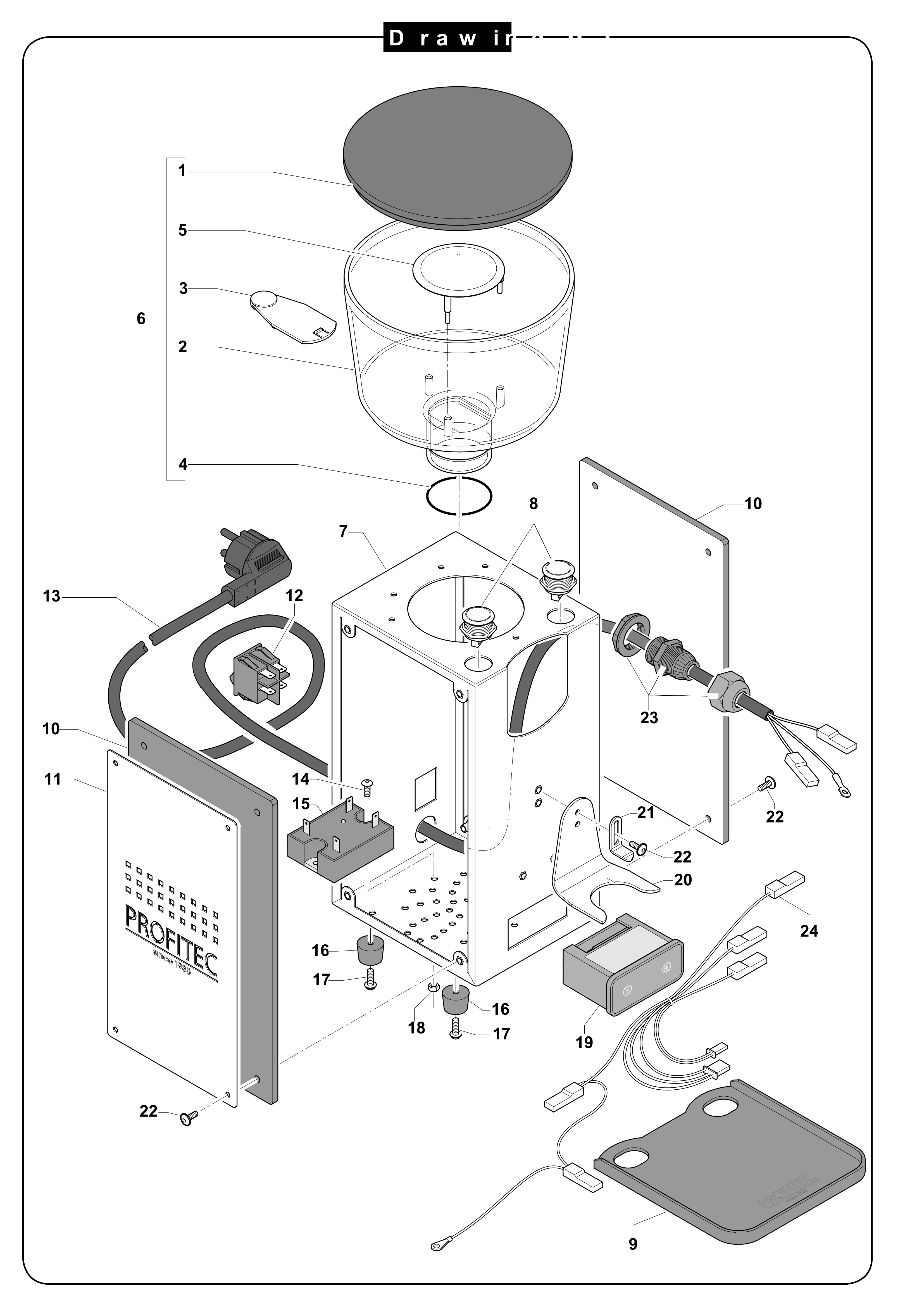

T64 Exploded View - Chassis, Hopper, Electrics



Position

Part number

Description

1

G1009

Cover bean hopper

2

G1000S

Bean hopper, tinted

3

G1014

Slide bean hopper

4

G1017

Gasket bean hopper

5

G1002S

Safety cap bean hopper, tinted

6

G1000S.K

Bean hopper complete

7

G1300

Body/Basic rack

8

P2566

Button

9

G1008.1

Collecting plate coffee powder

10

G1320

Side panel acrylic glass left/right black

11

G1303

Side panel logo "Profitec" left/right

12

G1021

On-/Off switch

13

C199900957

Cable Schuko plug

13

P2034

Cable US plug

13

P2035

Cable UK plug

13

P2036

Cable AU plug

14

P2055

Screw lens head M3x6

15

P6031

Static relay

16

G1015

Foot

17

G1031

Screw lens head 3x12 for plastic

18

P2026

Nut M4

19

G1130

Electronic with timer 220V-240V

19

US1050

Electronic with timer 110V-120V

20

G1301

Rack portafilter

21

G1302

Fixation portafilter

22

P6101

Screw lens head M3x8

23

P2070

Wire clips

24

G1260

Cable loom
