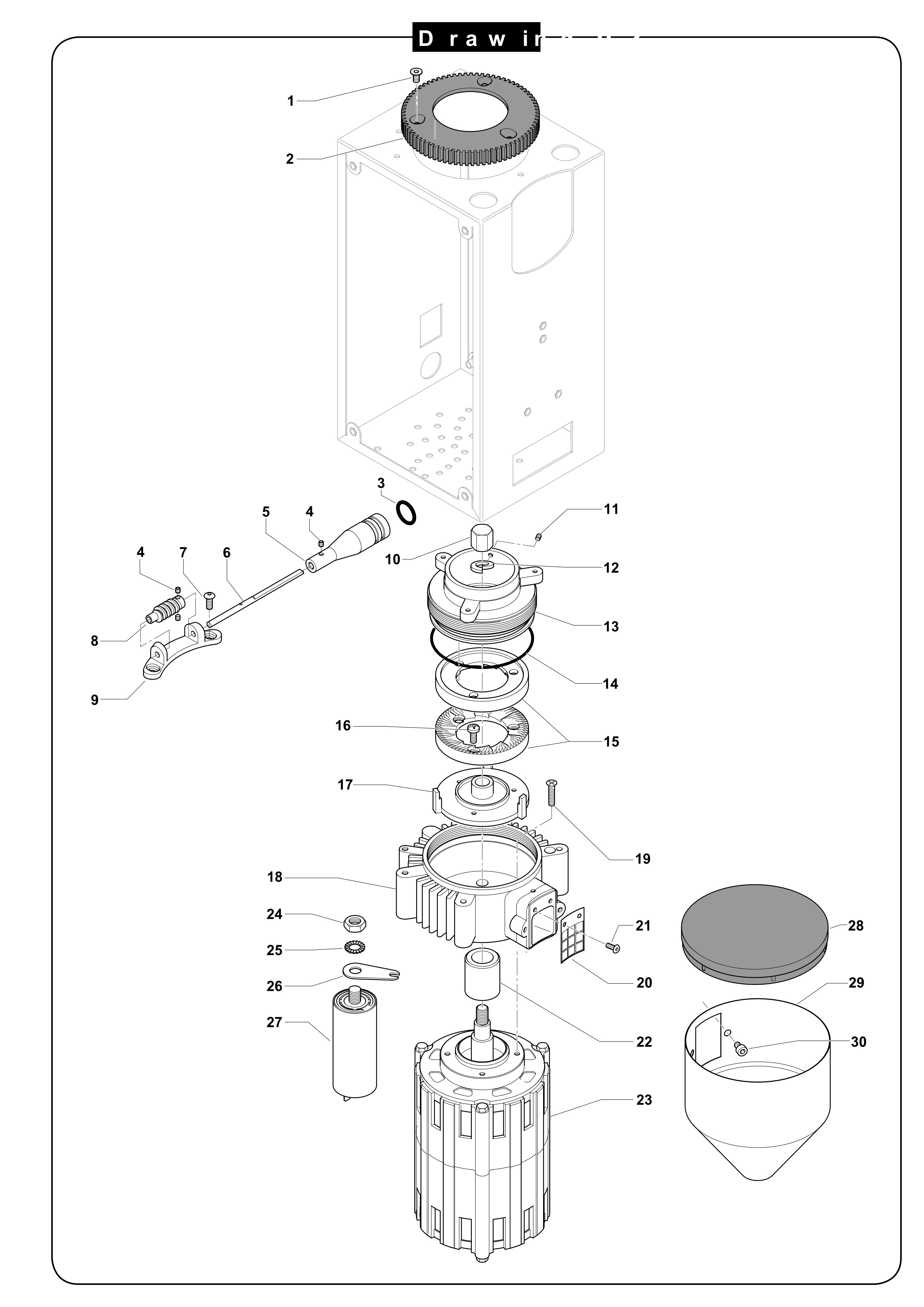

T64 Exploded View - Burr Assembly, Motor, Funnel

Position

Part number

Description

1

P6111

Screw counter sunk head M4x8

2

G1100

Gear setup grind level

3

G1019

O-Ring rabbet handle

4

P6112

Allen screw M3x3

5

G1305

Handle worm

6

G1102

Axis worm

7

P2022

Screw lens head M4x10

8

G1103

Worm

9

G1053

Bracket worm

10

G1033

Cap nut M8

11

G1029

Safety screw bean hopper M4x10

12

P2011

Spring ring 8,0

13

G1054

Burr bracket upper, insert

14

G1016

Gasket burr bracket

15

G1040

Burr, d=64mm (pair)

16

P6110

Screw counter sunk head slotted M4x10

17

G1055

Burr bracket lower

18

G1057

Corpus

19

P6109

Screw countersunk head M4x20

20

G1192

Grid coffee shaft

21

P2064

Screw lens head M3x5

22

G1199

Distancing piece

23

G1220

Motor 220V-240V/50Hz 400W

23

G1221

Motor 110V-120V/60Hz 400W

24

C309900127

Nut M8

25

B7479947

Lock washer 8,0

26

G1304

Bracket capacitor

27

G1240

Capacitor motor 220V-240V

27

G1241

Capacitor motor 110V-120V

28

G1013

Cover coffee funnel

29

G1119

Coffee funnel

30

B7826212

Screw cylinder M4x6
