Synchronika Steam and Water Valves

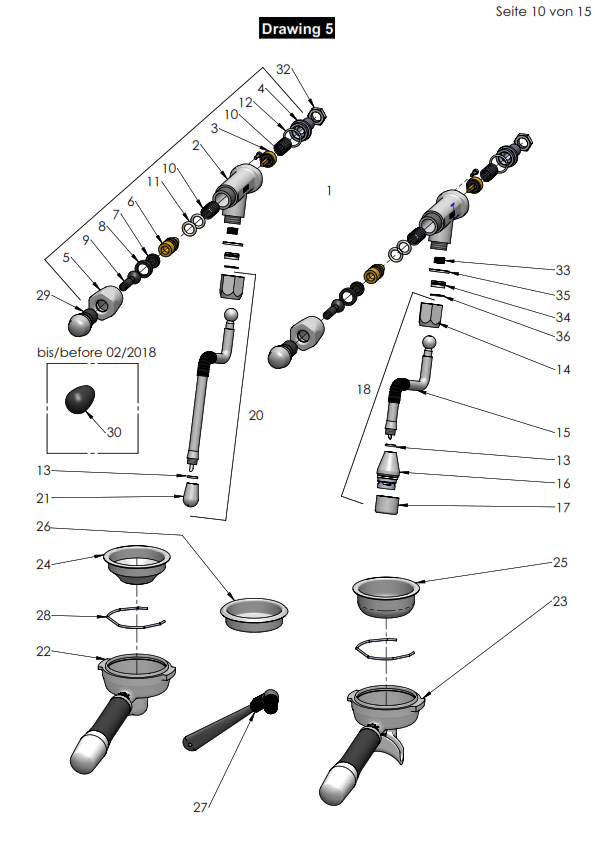

Pos. Artikelnr./   Bezeichnung     Description
  Item  No.
1 P6070   Dampf- Hei~wasserventil     Steam/hot water valve
2 P6070.1   Ventilkorpus     Valve corpus
3 P6003.9   Ventilstift f~r QS-Ventil     Plug QS-valve
4 P6070.3   Anschluss     Connector
5 P6070.2   ~berwurfmutter Ventilkorpus     Nut valve corpus
6 P6003.5   ~ffnung  QS Ventil     Nozzle QS valve
7 P6003.4   Knopf QS     Knob QS
8 P6003.2   Inox-Einsatz Ring QS     Gasket inox QS
9 P6003.3   lnox Hebel QS     lnox lever QS
10 P6003.7   Feder Ventil QS     Spring valve QS
11 P6003.6   O-Ring 113     O-ring 113
12 P6070.4   Dichtung Ventilkorpus/Anschluss     Gasket valve corpus/connection
13 P6002.1   Dichtung     Gasket
14 P6005.5   Nuss mit Teflonring     Nut steam with teflon-ring
15 P6002.2   Gummiisiolation     Rubber isolation
16 P6001.1   Hei~wasserauslass     Hot water outlet
17 P6001.2   Sieb Hei~wasserauslass     Strainer hot water outlet
18 P6006   Heiwasserrohr komplett     Hot water tube complete
19 P6002.2   Gummiisiolation     Rubber isolation
20 P6005   Dampfrohr komplett mit 2-Loch  D~se     Steam lance compl. with 2-hole nozzle
  P6002.4   2-Loch Dampfd~se no burn     2-hole steam nozzle
P6002.7                3-Loch Dampfd~se no burn                                     3-hole steam nozzle                                                          8,32
21
  P6002.6   4-Loch Dampfd~se no burn     4-hole steam nozzle
  P6002.3   5-Loch Dampfd~se no burn     5-hole steam nozzle
22 89424   Filtertr~ger 1   Auslauf     Portafilter 1   outlet chrome/black
23 89425   Filtertr~ger 2 Ausl~ufe     Portafilter 2 outlets chrome/black
24 C619900104   Tassensieb 7g     Cup filter 7g
25 C619900105   Tassensieb  14g     Cup filter 14g
26 C619900106   Blindsieb     Blind filter
27 R210   Reinigungspinsel     Cleaning brush
28 C619900098   Haltefeder Filtertr~ger     Locking spring portafilter
29 P1019   Griff M8 quick steam valve     Lever handleM8 quick steam valve
30 C439900840   Griff     Lever handle
32 C329900682   Mutter (halb)  1/4"     Nut (half)  1/4"
33 P6011   Feder     Spring
34 P6010   Pfanne Teflon     Socket Teflon
35 P6015   Dichtung  Ubergang Nuss Ventil     Gasket nut valve
36 P6012   Unterlegscheibe     Washer socket
