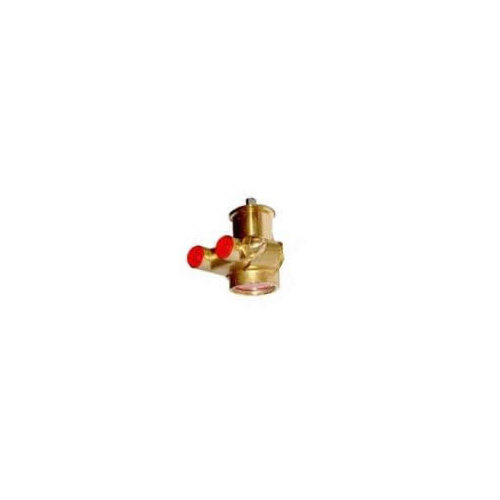

Procon Plane Rod Rotary pump. 180l/min

Balanced by pass, total lenght 99mm, body lenght 86mm.

Before assembly, fill the pump with water and manually rotate the rotor shaft back and forth a few times. At the same time, grease the end of the pump rotor shaft and its coupling on the motor shaft. Make sure that the pump is protected by a filter (0.15mm mesh) to prevent the entry of particles and foreign bodies. Avoid running the pump dry.
Make sure that any sealing material does not enter the pump.

Technical Information

Agency ApprovalsFood grade Material - No Agency Approval (1.5% Max Lead)

MaterialBrass

Port HoleNPT 3/8"

Mounting TypeClamp-On

Drive ConfigurationDouble Flat

Flowrate (GPH)60GPH

Flowrate (LPH)180LPH

ElastomerEPDM/Nitrile

Seal TypeNon Balances Ceramic/Carbon

RotationClockwise

Internal Component MaterialCarbon

Internal Component ClearanceSpecial Clearance for High Temperature Applications

Valve TypeBypass- Ultem

ValveConfigurationBalanced- External adjust

Product Weight2.16lb (0.98Kg)

Operating Range

Maximum Mechanical Power Requirement0.35hp (261W)

Maximum Operating Pressure100psi

Relief Valve Set Pressure Range100 to 150psi (7 to 10 BAR)

Max Static Pressure PSI100psi

Min Operation Fliud Temperature-4°F

Max Operation Fluid Temperature194°F

Max Fluid Viscocity100cP

Max Sound Level60dB(a)

Max Discharge Pressure250psi

MinSpeed1000RPM

Max Speed2400RPM

Dry Suction Lift3.3ft

Wet Suction Lift6.6ft

Fluid Acidity6pH

Maximum Total Dissolved Solids (TDS)5000ppm

  •
  •



Please refer to our Warranty Policy.

SKU 31318
Brand Procon
Shipping Weight 0.6800kg
Shipping Width 0.020m
Shipping Height 0.020m
Shipping Length 0.010m
