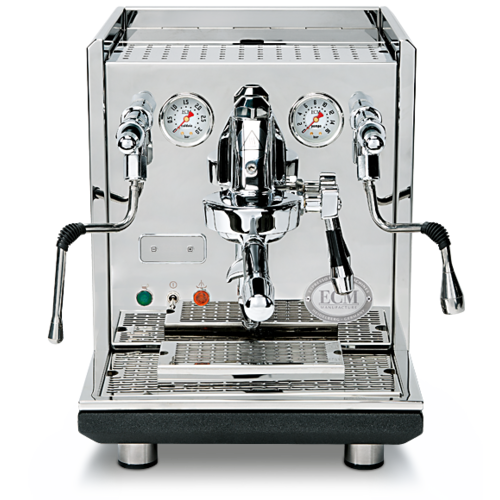

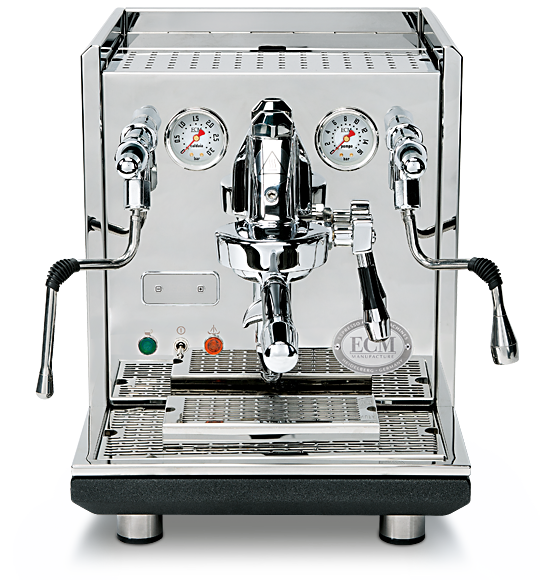

ECM Synchronika

The ECM Synchronika distinguishes itself by its fresh design. The visually distinct, powder coated chassis in anthracite at the bottom of the machine in combination with the polished stainless steel housing is eye catching.
ECM Synchronika Features:

Dual boiler espresso machine
Coffee boiler made of stainless steel with a 0.75 l volume; steam-/hot water boiler with a 2.0 l volume; boiler insulation
Steam boiler which can be turned off independently via an on/off switch

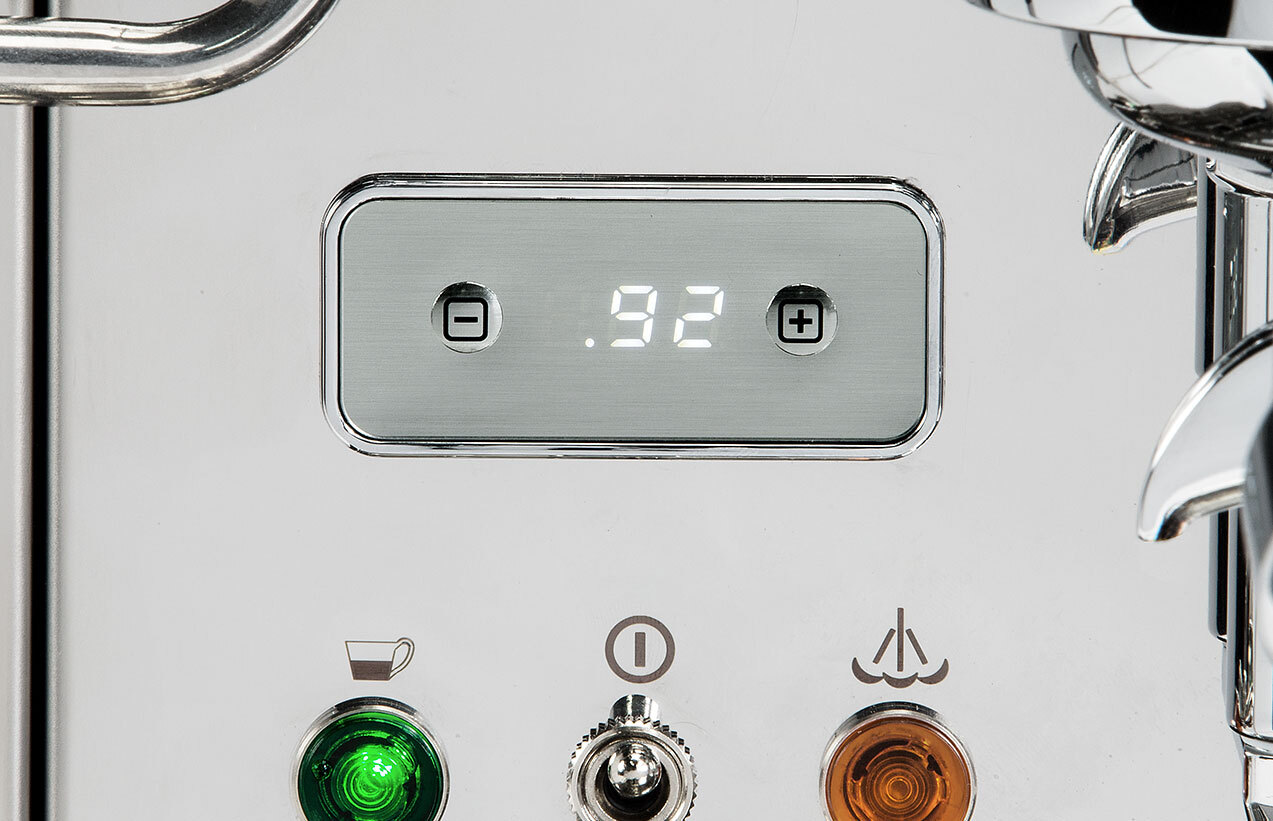

PID-display
individual adjustment of the temperature in both boilers
shows the brewing time in seconds
an optional display to remind you of the group cleaning.
Intervals can be programmed individually.
can be turned off at any time

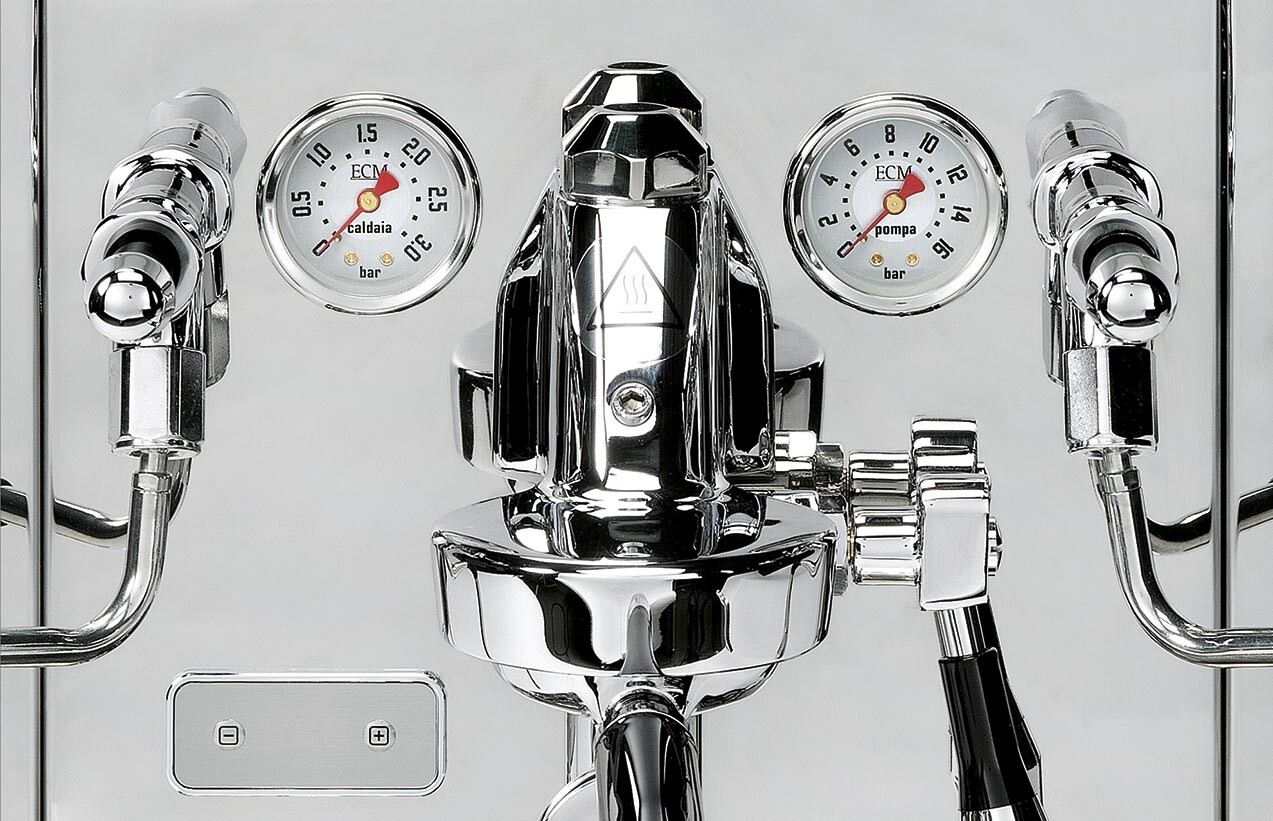

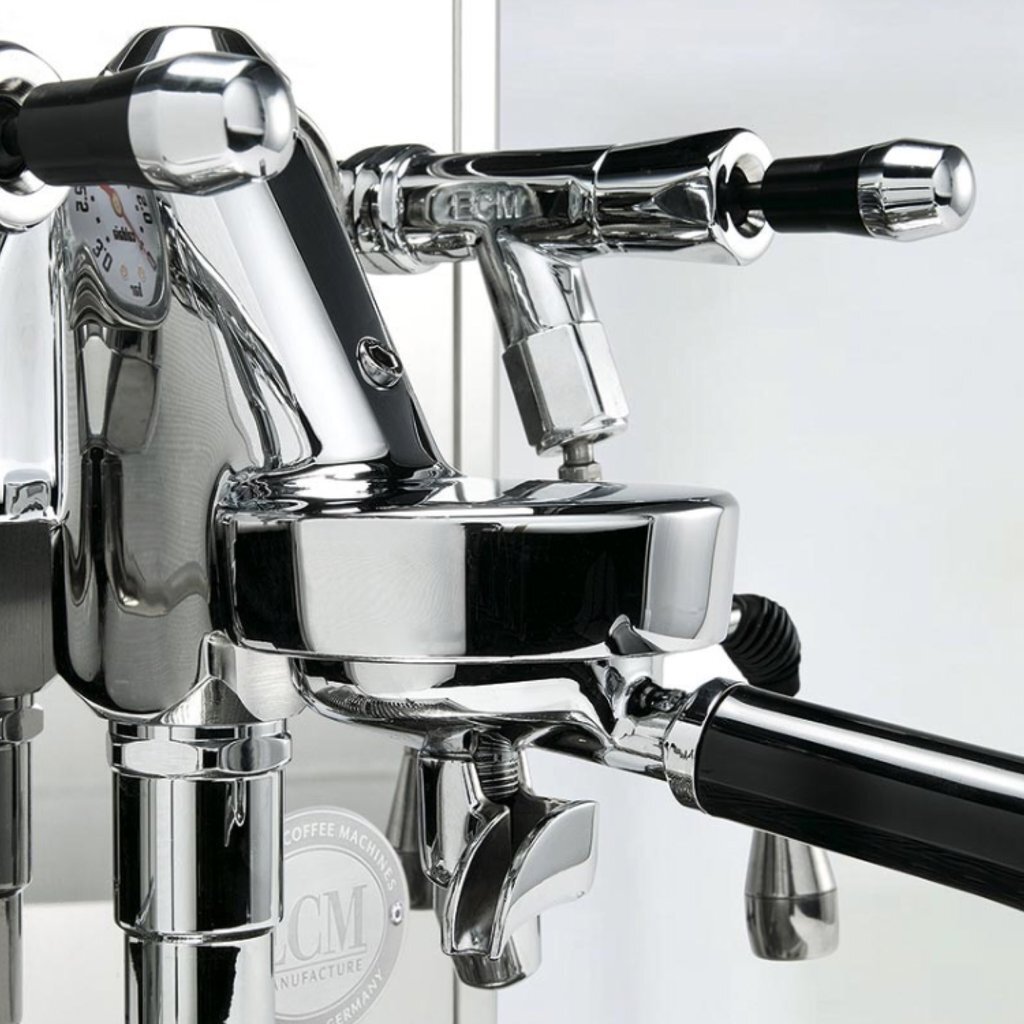

Patented ECM E61 brew group
Quiet rotary pump
Switchable from water tank to direct water connection
Drainage hook-up for residual water is possible
In case of water shortage the machine will shut down only after the portion brewed is finished
"Quick steam" valves with an improve movement due to a 70° angle
High end "no burn" steam and hot water wands
Ergonomic ECM portafilters
1x 1400 W and 1 x 1000 W heating element
230 V
Dimensions without portafilter (WxDxH): 335 x 490 x 410 mm
Weight 30kg

Included Accessories:

Single Spout Portafilter
Dual Spout Portafilter
Single & Double Filter Baskets
Blind Filter
Tamper
Stainless Steel Hose for mains connection
Group Cleaning Brush
User Manual

Must Have:

The E61 Flow Control Device allows you to adjust the flow of water in your brew group to manually profile your extractions. This custom component is a stainless steel needle valve, which allows the user to vary the amount of water flowing through the group. Variable flow control allows for lengthy pre-infusion for more even saturation and extraction of your espresso.

Similar to Profitec's existing mushroom, the flow control device is made from stainless steel to resist corrosion. The resulting changes in pressure are reflected by an included gauge which installs on the front of the group. The E61 Flow Control Device can be installed on any Profitec Espresso machine with an E61 brew group.

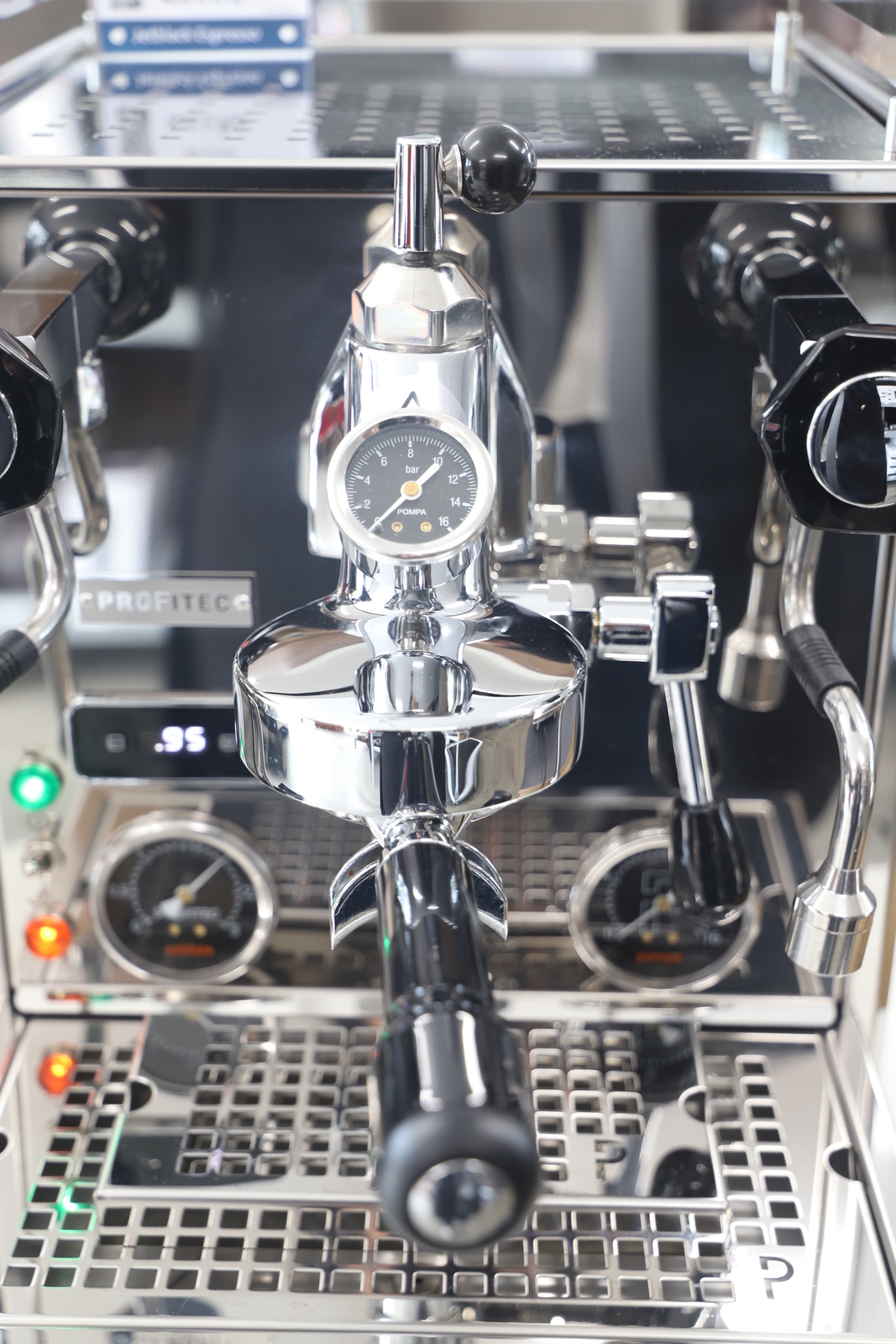

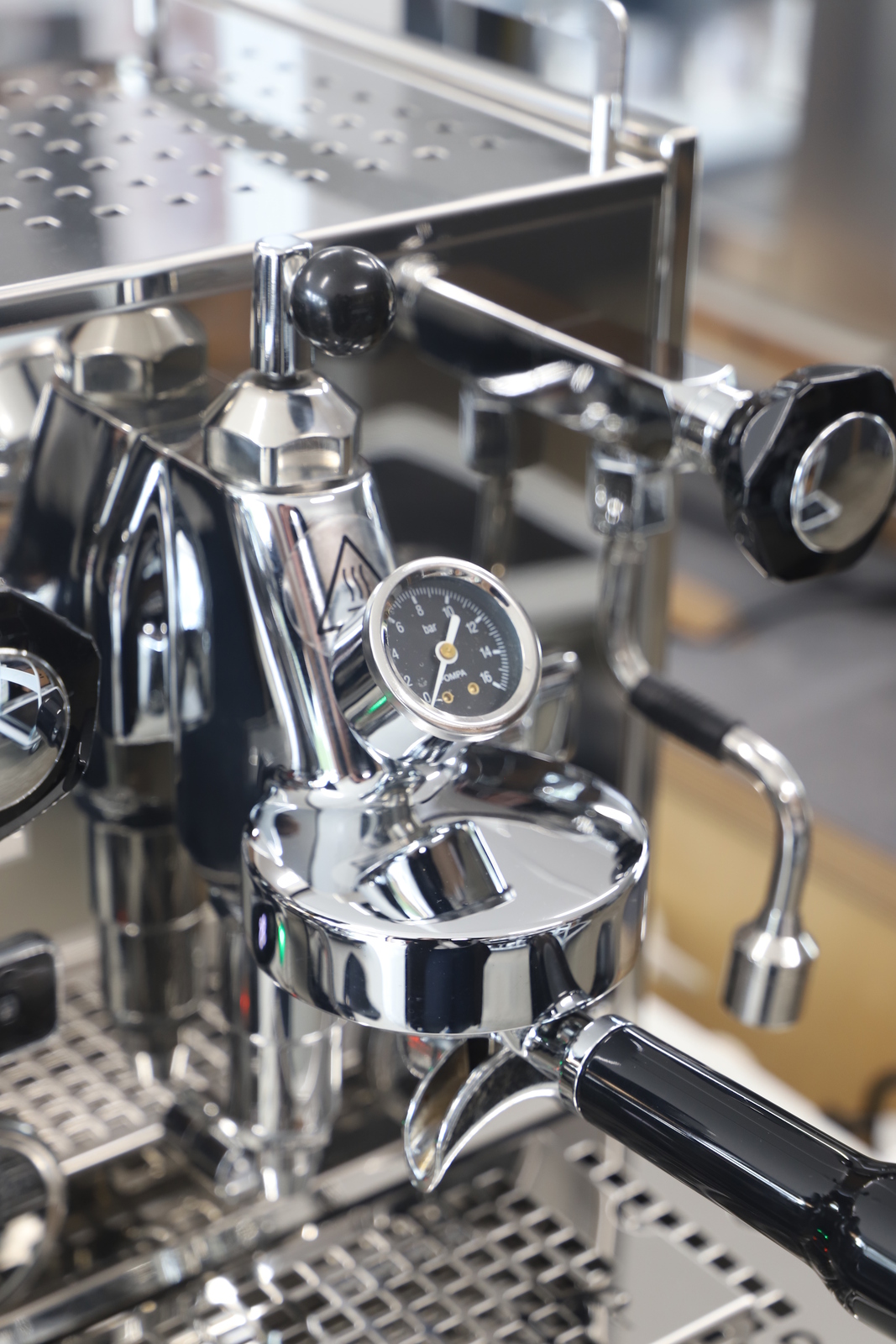

*Please note the photos of the flow control is of the profitec flow control, the ECM flow control regulator has a white face*

*Please Note: If selecting the E61 Flow Rate Regulator option, please allow for a 2-3 day delay on dispatch as this part must be fitted by our workshop technicians.

We recommend purchasing an adjustable PLV for fixed water connections as the rotary pump in this machine stipulates a maximum input pressure of 2BAR.

Others Also Browsed

Profitec DRIVE

ACS Vesuvius

Ascaso Duo PID PLUS

What size tamper will I need for this machine?

The nominal tamper size for this machine is 58mm, however you will get the best fit in your machine's basket by purchasing a 58.55mm PreciseFit tamper.

Country of origin

Germany

(78916)

Please refer to our Warranty Policy.

SKU	78916
Nominal tamper size	58mm
Ideal tamper size	58.55mm
Barcode #	4260013826134
Brand	ECM Manufacture
Shipping Weight	35.0000kg
Shipping Width	0.600m
Shipping Height	0.600m
Shipping Length	0.600m
Heat up time	5-15 Minutes
Number of Groups	1 Group
Height	40cm-45cm
Pump	Rotary
Temperature Control	PID
Heating System	Double boiler
Width	More than 29cm
Steam Valve Type	Lever
Brew Group	e61
Pressure Profiling	No
Pressure Profiling	Analogue
Water Supply	Switchable
Volumetric	Semi-Automatic
Built-in Grinder	No
Country of origin	Germany

Beautiful machine, great coffee

By: Carol Liu on 2 June 2021
Stunning machine, extremely heavy. Don’t bother to get it out of the box if you are not strong enough. Totally different from the brands you can get from Harvey Normal or David Jones. Having a Sunbeam EM7000 for 7 years, I decided to upgrade. After reading lots of reviews about Breville dying after 2-3 years (although they do make beautiful coffee), I decided to pay for something not only looking better but with much better quality which actually equals to much longer life. It does take 15 minutes for the machine to warm up and get ready. So it’s a bit of pain that I need to go downstairs to turn on the machine first thing when I get up, then go up again to get ready for day etc. Paired this espresso machine with a Ceado E6. Again, great grinder, very heavy. However, I have to say I spent a couple of months to find out that the steam temperature could be set to 132, while the machine came in set to 128. It makes a big difference and finally I got the milk done much quicker in a silky smoothy quality. I would also suggest anyone who would like to get this machine to get the 4 -hole tip to get much better steaming function.

(5)

Most likely my espresso machine end-game

By: Patrick Shaddock on 28 August 2020
After lots of researching upgrades for my Rocket Giotto, I finally landed on the Synchronika based on build quality, capability and reliability. It is a stunning, classic looking machine, better in real life than the pictures. Coffee is already a consistent 8/10 and when I add the flow control in a few months I expect to get into the 9’s and 10’s. Not a huge fan of the indicator lights, but if that is my only gripe then life must be good. Jet Black Espresso service was spot on and I look forward to coming back to do more business in the future.

(5)

Wonderful machine with a few caveats

By: AndrewH on 16 August 2020
Positives: Has been making wonderful coffee and steamed milk ie. the output has been tasting great. Is beautiful to look at and build quality is high The levers work instantly and functionally are great. I enjoy the shot timer - very convenient Negatives The refill pump comes towards the end of milk steaming and drops the pressure which is annoying me. Perhaps that's a fault or perhaps the boiler is a little small - I'm leaning towards the former rather than the latter so maybe it's fixable - who knows... The steam and hot water levers have cams that may wear and although I'm pretty sure you can get parts to maintain it maybe the cams and rods/actuators should be harder material? I'll leave that one out there for the engineers. The steam and water boiler doesn't work independently on a 10A power supply which partially cripples the machine and partially defeats the purpose of having a dual boiler machine. Most of the time it "sort of works" but extra grunt from 15A-20A would be better and should be available but I think the importer has decided we just get 10A in the Australian market without giving us the option of chosing for our ourselves which is rather undemocratic don't you think.. Some markets can pick their own amperage using PID settings and obviously you'd need an electrician to supply an appropriate electrical outlet in your house eg. like they do for ovens and air conditioners etc

(4)

Fantastic product

By: Greg C on 22 November 2019
I purchased this model just over 5 years ago now. Packaged with automatic grinder. Serviced regularly. Run without issue - I can't imagine waking up and not being able to make our morning coffee. Together with the ability to buy in beans to our taste at two coffees a day the pay back period is about a year after that your coffee costs run about 1/2 of what you pay in a cafe. I have no problem recommending this machine as a part of your total package - oh don't forget to include the barista course (I am asssming they still run this)

(5)

ECM Synchronika

By: Margarita Marov on 4 December 2018
An truly beautiful and amazing coffee machine with upgraded PID model. We have a commercial grade machine in the home and has the versatility of being plumbed in or use filtered water. Great German engineering of internal parts to guarantee no mechanical issues and Italian design for it's gorgeous looks. Highly recommend the ECM as the best product in it's class.

(5)
