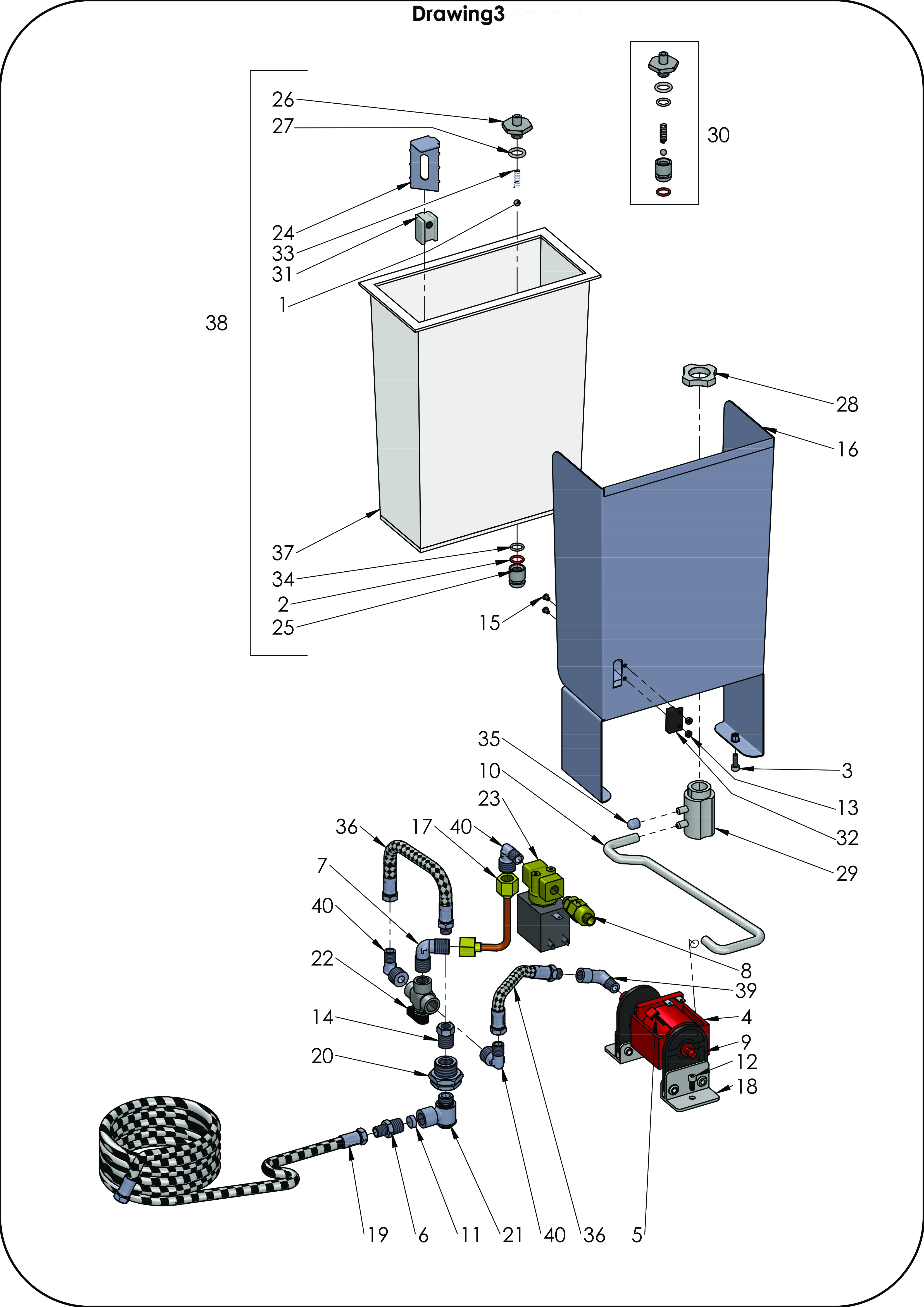

Pro 800 Exploded View - Water Tank, Pump

Position

Part number

Description

1

B5471509

Ball water tank lock

2

B7496076

Seal water tank adapter lower

3

P2006

Screw cylinder head M4x10



C199900286

Vibration pump 230V 50Hz

4

US1001

Vibration pump 120V 60Hz

US1025

Vibration pump 100V 60Hz

5

C199900969

Thermostat vibration pump

6

C229900519

Nipple 1/4"M 1/8"M

7

C229900525

Elbow 1/4"MM

8

C229900548

Non-return valve 1/8"MM

9

C249900770

Bracket vibration pump upper

10

C499900769

Silicone tube transparent 5x8

11

C519900369

Filter direct water operation

12

P2006

Screw cylinder head

13

P2019

Hexagon nut M3

14

P2030

Reducer 1/4"M 1/8"F

15

P2021

Screw lens M3x10

16

P2174

Water tank guide rail

17

P2530

pipe

18

P3006.K

Bracket vibration pump lower

19

P3020

Flex hose 3/8"F 1/8"F l=1500mm

20

P3023

Run 1/4"FF

21

P3527

Elbow 360° rotary 1/4"M 1/4"F

22

P3528

Valve 3-ways manual 1/4"FFF

23

P3529

Solenoid valve 2-ways 1/8"FF 230V/50Hz

US1002

Solenoid valve 2-ways 1/8"FF 110V/60Hz

24

P6016

Cap floater water tank

25

P6017

Water tank adapter union

26

P6020

Water tank adapter hexagon mounting nut

27

P6020.3

Seal water tank adapter upper

28

P6020.K3

Water tank adapter nut connector

29

P6020.K4

Water tank adapter connector

30

P6020.NK

Water tank adapter complete

31

P6021

Floater water tank

32

P6022

Reed sensor low water switch-off

33

P6023

Spring water tank lock

34

P6025

Seal water tank adapter middle

35

P6026

Closure cap water tank adapter

36

P8012

Flex hose 1/8"M 1/8"F l=180mm

37

P9010

Water tank blank

38

P9010.K1

Water tank complete

39

C229900579

Elbow 1/8"MM

40

P9015

Elbow 1/4"M 1/8"M
