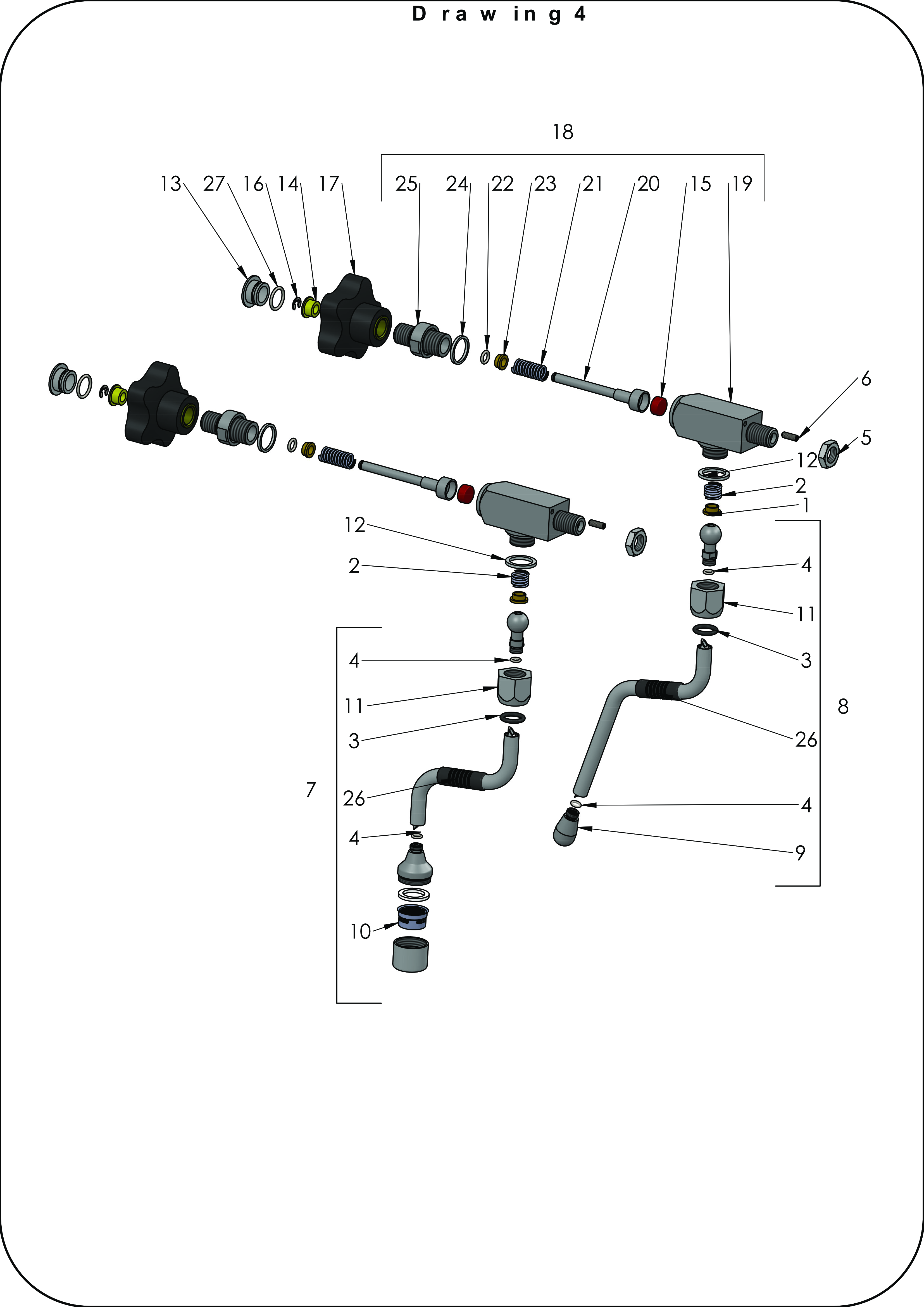

Pro 800 Exploded View - Steam, Water Valves

Position

Part number

Description

1

B5220606

Socket steam-/hot water valve

2

B5471532

Spring steam-/hot water valve

3

B7496073

OR sight glass

4

B7496083

Gasket joint transition

5

C329900682

Half nut 1/4

6

G1032

Headless screw M4x12

7

P2540

Hot water wand

8

P2541

Steam wand

9

P2542

Steam nozzle 4 holes

P2543

Steam nozzle 2 holes

10

P6001.2

Colander hot water outlet

11

P6002.5

Nut steam/hot water wand

12

P6015

Gasket teflon nut-valve

13

P8103

Cover valve handle

14

P8105

Spacer valve

15

P8106.1

Gasket valve spindle

16

P8106.2

Circlip valve spindle

17

P8107

Rotary handle

18

P8108

Valve steam/hot water

19

P8108.1

Valve corpus

20

P8108.2

Valve spindle

21

P8108.4

Spring valve spindle

22

P8108.5

O-ring valve spindle

23

P8108.6

Socket valve spindle

24

P8108.7

Gasket teflon connector

25

P8108.8

Connector valve handle-valve corpus

26

P8110

Rubber insulation

27

P8111

Gasket cover valve handle
