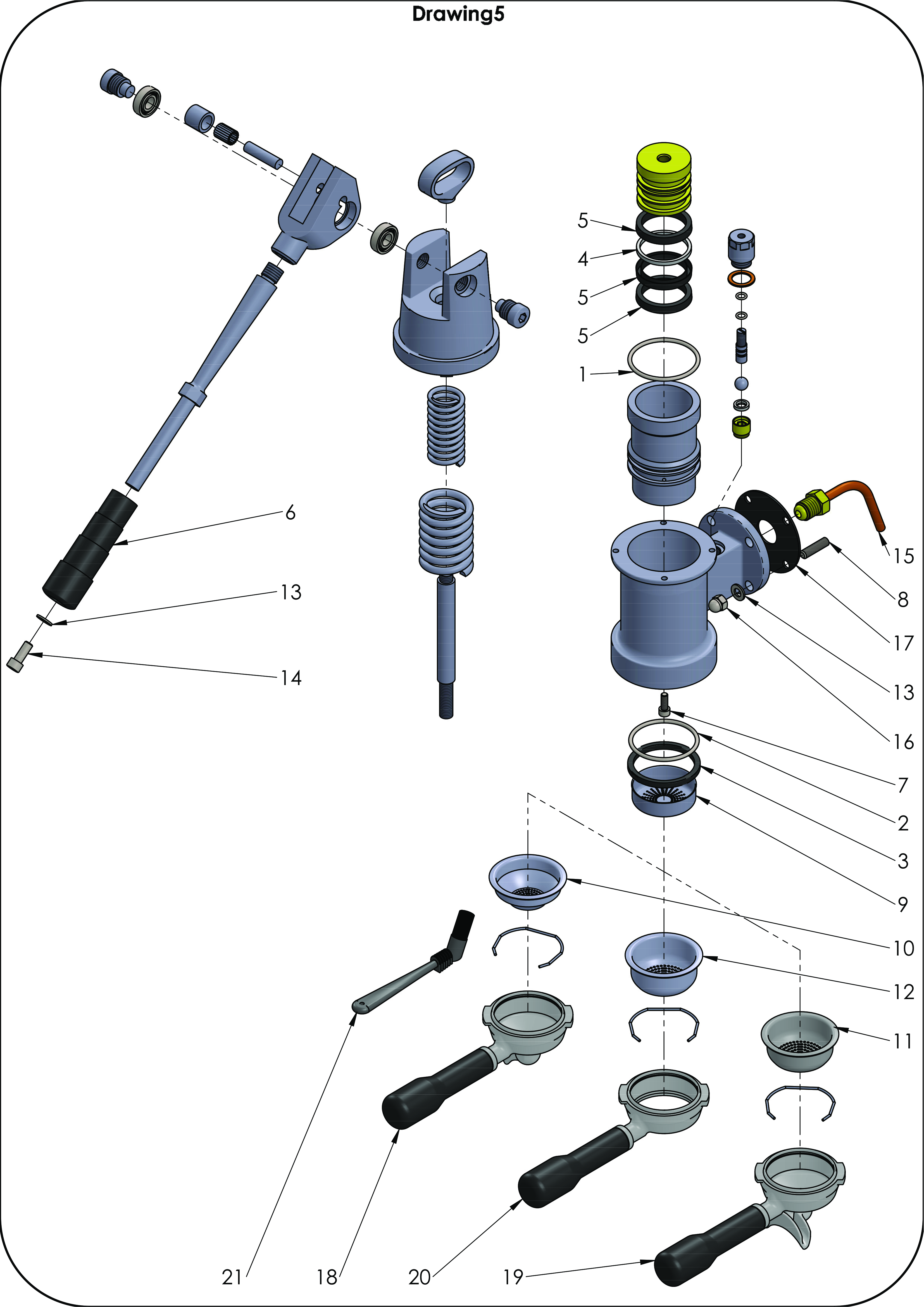

Pro 800 Exploded View - Group, Portafilter, Accessories

Position

Part number

Description

1

P1012.3

O-Ring 58,74 x 3,53

2

P1012.4

O-Ring 57,15 x 3,53

3

P2533

Group gasket

4

P1012.2

Gasket teflon piston

5

P1012.1

Gasket piston

6

P1012.5

Handle plastic

7

P1985

Screw cylinder head M5x16

8

C309900131

Allen set screw M8x31

9

C519900103

Shower screen

10

C619900104

Filter 7g

11

C619900105

Filter 14g

12

C619900107

Filter 21g

13

P2010

Flat washer M8

14

P2073

Screw cylinder head M8x20

15

P2526

Inlet pipe brewing group (dipper) M18 M

16

P2531

Cap Nut M8

17

P2532

Gasket group-boiler

18

Pr5160

Portafilter 1 spout

19

Pr5170

Portafilter 2 spouts

20

Pr5180

Portafilter bottomless

21

R210

Cleaning brush brew group
