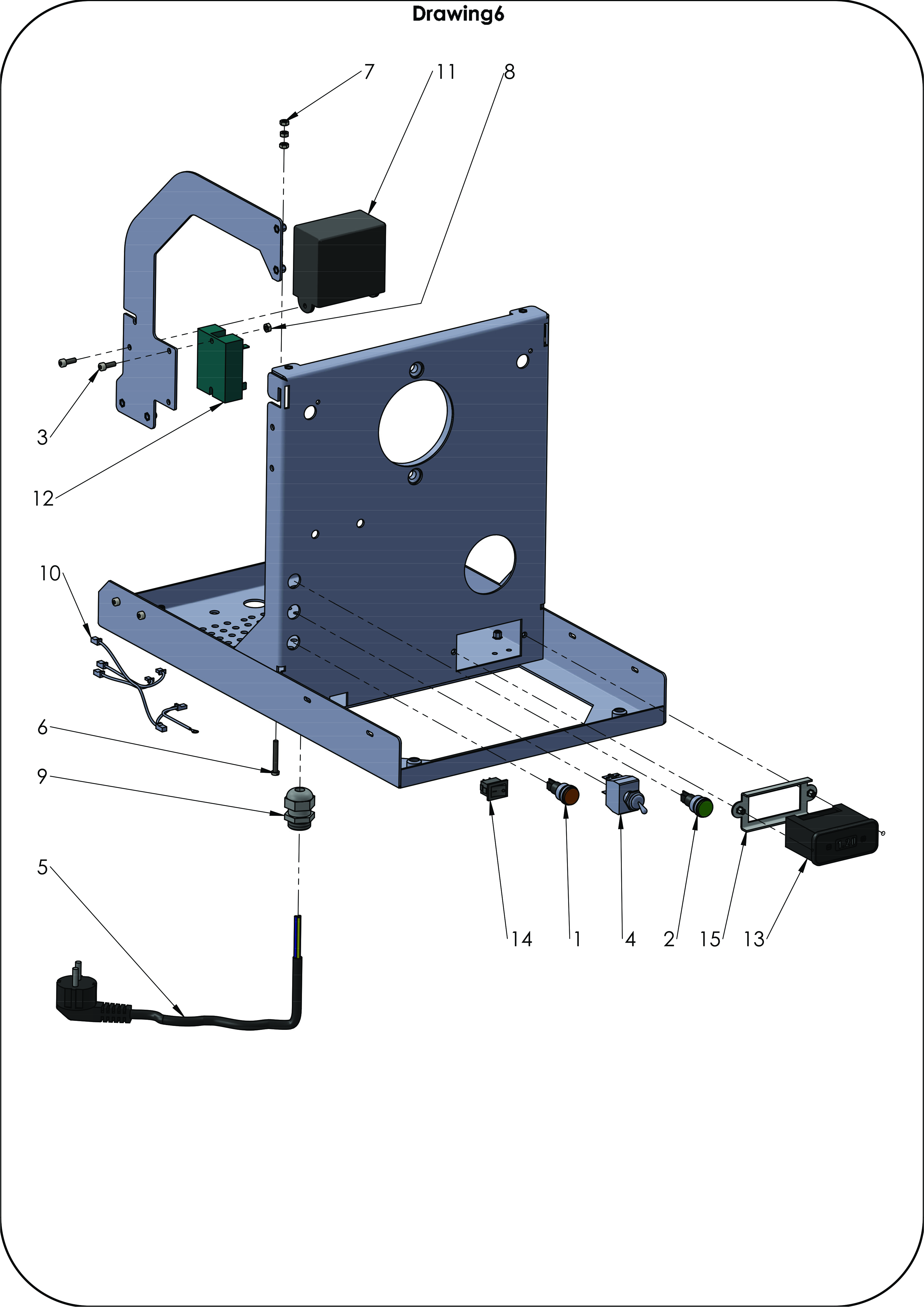

Pro 800 Exploded View - Electrics

Position

Part number

Description

1

B7633617

Control lamp orange

2

B7633618

Control lamp green

3

B7819901

Screw cylinder head M4x12

4

C199900087

Power switch metal

5

P2036

Power cable AU-plug l=1500 3x1,5²

6

P2001

Screw M4x30

7

P2026

Hexagon nut M4

8

P2026

Brass nut M4

9

P2070

Cable clip with hexagon nut

10

P2590

Cable harness

11

P4101

Electronic 220V-240V

US1051

Electronic 115V

12

P6031

Static relays

13

P6035

Thermo PID

US1041

Thermo PID US 115V

14

P9114

Switch 0/1

15

P2170.2

Bracket PID
