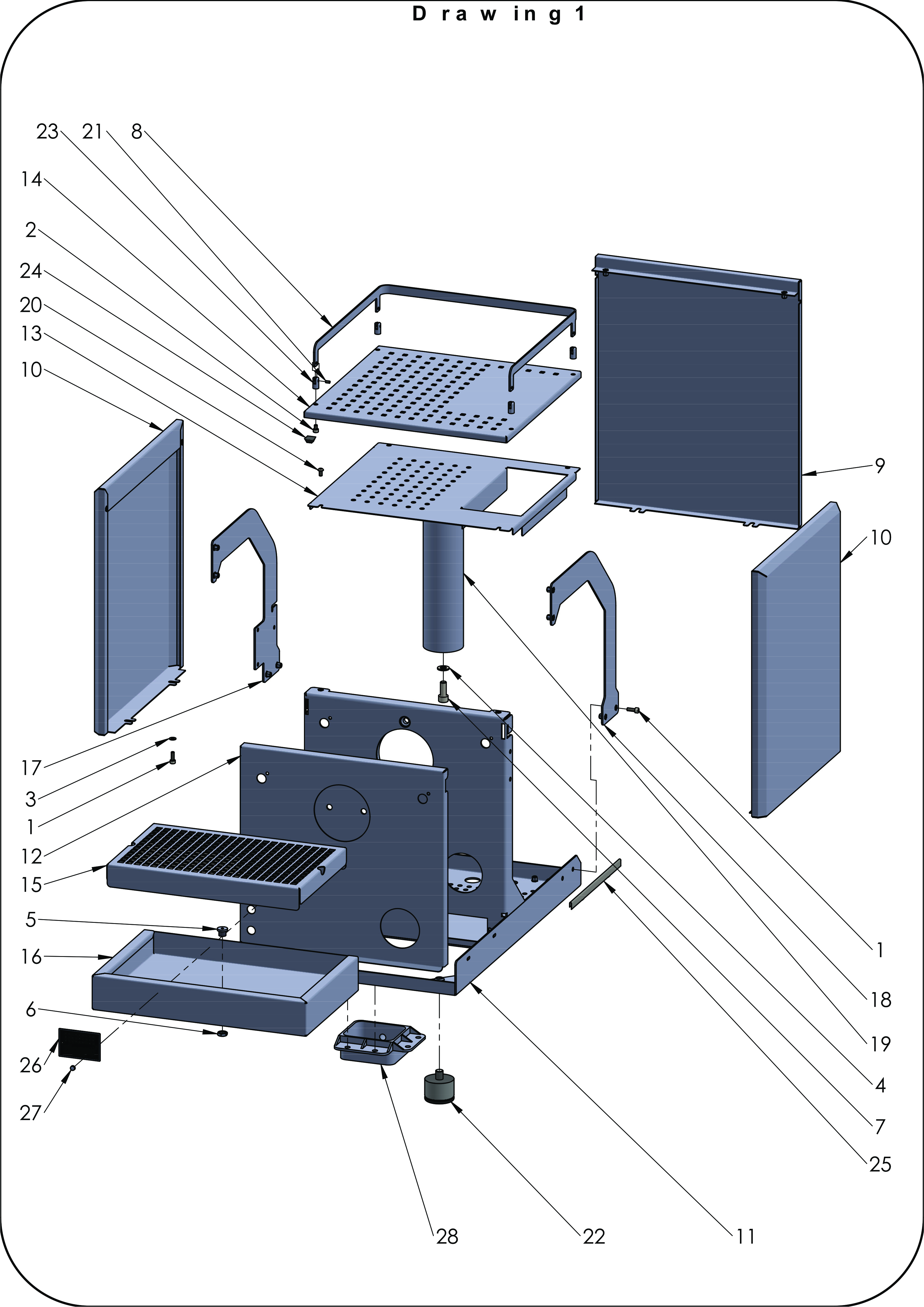

Pro 800 Exploded View - Chassis

Position

Part number

Description

1

P1996

Screw cylinder M4x16

2

B7826212

Screw cylinder M4x6

3

P2009

Flat washer

4

P2010

Flat washer 0 8

5

P2058

Blind plug 1/8"M

6

P2067

Hexagon nut (half) 1/8"

7

P2073

Screw cylinder M8x20 A2

8

P2115

Railing cup warming tray

9

P2116

Rear panel

10

P2117

Side panel left/right

11

P2170

Base frame

12

P2171

Front panel

13

P2172

Cup warming tray lower

14

P2173

Cup warming tray upper, removable

15

P2175

Grid drip tray

16

P2176

Drip tray

17

P2177

Reinforcement plate left

18

P2178

Reinforcement plate right

19

P2556

Balance weight

20

P2022

Lens screw M4x10

21

P6112

Allen screw M3x3

22

P7025

Foot h=30mm

23

P8104

Post railing cup warming tray

24

B7474212

Foot cup warming tray 12x12

25

P2170.1

Guide rail drip tray

26

P2063

Emblem Profitec

27

P1999

Blind rivet truss head 3x8

28

P2505

Drainage plastic base
