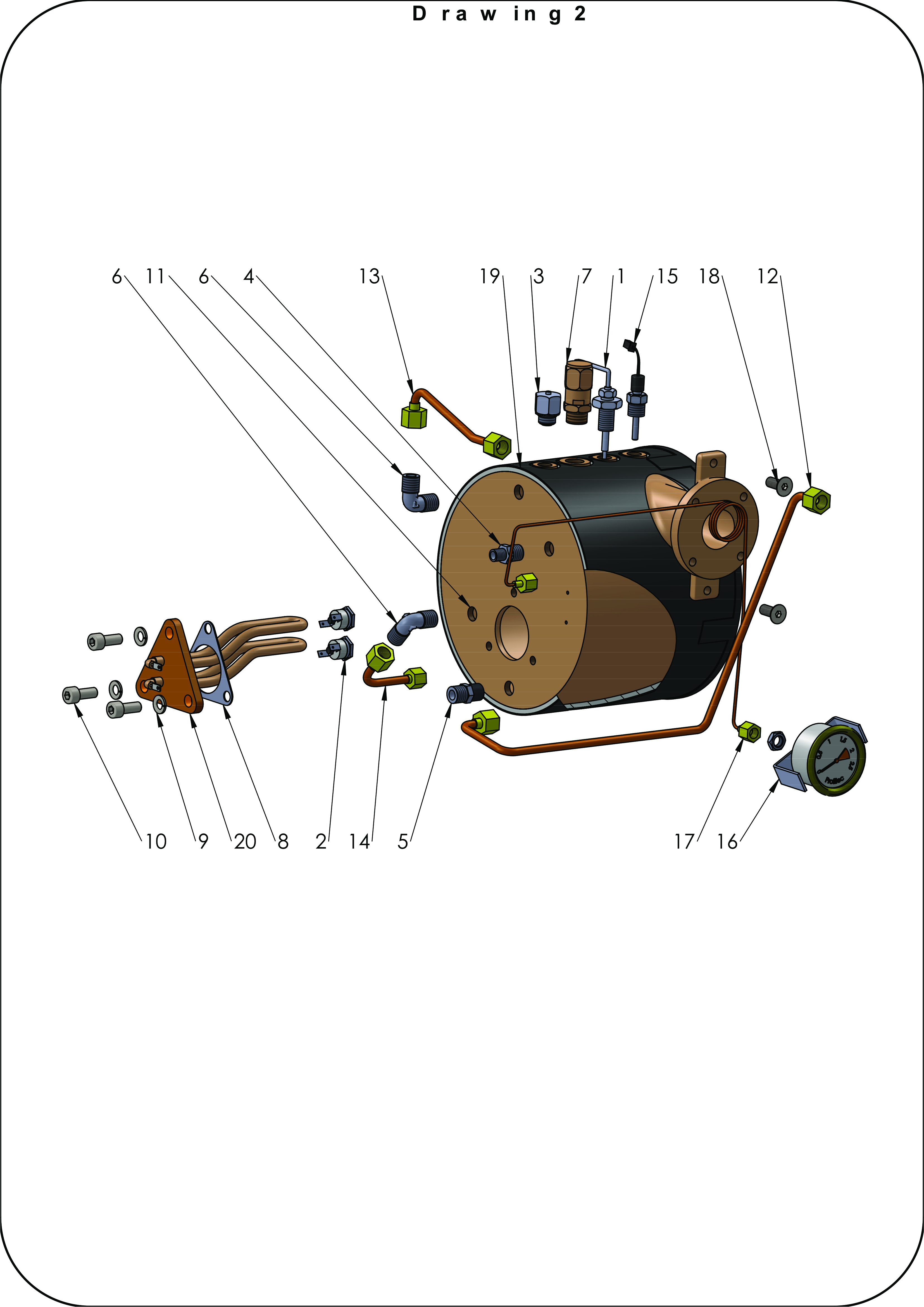

Pro 800 Exploded View - Boiler, Gauge

Position

Part number

Description

1

C199900214

Filling level probe l=120

2

C199901550.1

Safety thermostat 145°C

3

C219900561

Anti-vacuum valve 1/4"M

4

C229900519

Nipple 1/4"M 1/8"M

5

C229900520

Nipple 1/4"MM

6

C229900525

Elbow 1/4"MM

7

C229900559

Safety valve 3/8"M

8

C469900779

Teflon gasket heating element

9

P2011

Spring ring M8

10

P2073

Screw cylinder M8x20 A2

11

P2507

Boiler

12

P2527

Hot water extraction tube

13

P2528

Steam extraction tube

14

P2529

Boiler loading tube

15

P6037

Temperature sensor 1/4"M

16

P2501

Boiler pressure gauge Ø=50, 0-2,5 bar

17

P6051

Capillary tube boiler pressure gauge

18

P6115

Screw countersunk head M8x20

19

P7054

Isolation boiler

20

P9247

Heating element 230V 1600W
