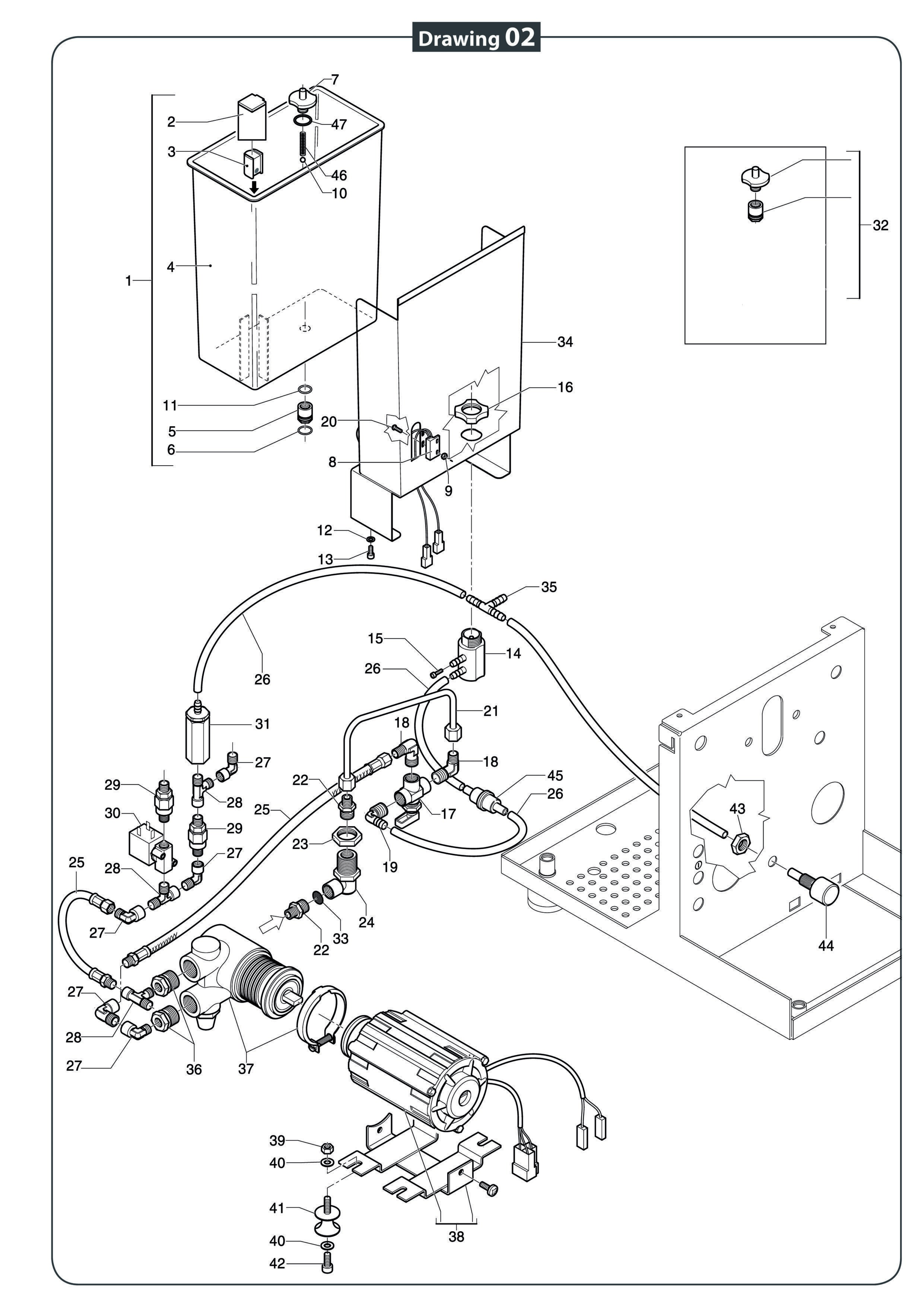

Pro 700 Exploded View - Water Tank, Pump

Position

Part number

Description

1

P9010.K1

Water tank complete

2

P6016

Water tank plug

3

P6021

Reed swimmer

4

P9010

Water tank

5

P6017

Watertankadapter lower stainless steel

6

B7496076

OR water tank adapter lower

7

P6020

Watertankadapter upper stainless steel

8

P6022

Reed sensor

9

P2019

Nut M3

10

B5471509

Ball 7/32"

11

P6025

OR water tank adapter middle

12

P2009

Washer 4,3x9,0x0,8

13

P2006

Screw cylinder M4x10

14

P6020.K4

Fitting water tank M20 plastic

15

P2006

Screw cylinder M4x10

16

P6020.K3

Nut M20 water tank plastic

17

P3528

Three-way valve manual 1/4"

18

P9015

L-connector 1/8"M 1/4"M

19

P6057

Connector silicone tube L 1/4"x6

20

P2021

Screw lens M3x10

21

P2520

Tube water connection-valve

22

C229900519

Dowel 1/4" 1/8"

23

P3023

Run FF 1/4" 1/4"

24

P3527

Rotating elbow 382/S 1/4"M 1/4"F

25

P8012

Metal hose flex 1/8"M 1/8"F, l=170

26

C499900769

Silicone hose 8x5

27

P9014

L-connector 1/8"M 1/8"F

28

C229900644

T-connector 1/8" MMF

29

C229900548

Recoil valve 1/8" MM

30

C199900275

Solenoid valve 230V 2 ways 1/8" FF

31

C229900911

Expansion valve

31

P2555.K

Expansion valve

32

P6020.NK

Adapter complete

33

C519900369

Filtre entry water connection

34

P2120

Eater tank guide rail

35

C400001932

Tee plastic

36

P3024

Reducer 3/8"M-1/8"F

37

P3025

Rotation pump 50l/h

38

P3026

Motor pump 220V/50Hz 120W

39

P2051

Nut M6

40

P2052

Washer 6,4x12,0x1,6

41

P3015.1

Foot motor rotation pump

42

P2057

Screw cylinder M6x10

43

P6103

Half nut M10

44

C227700898

Discharge nozzle

45

C439900695

Filter for silicone hose

46

P6023

Spring water tank

47

P6020.3

OR water tank adapter upper
