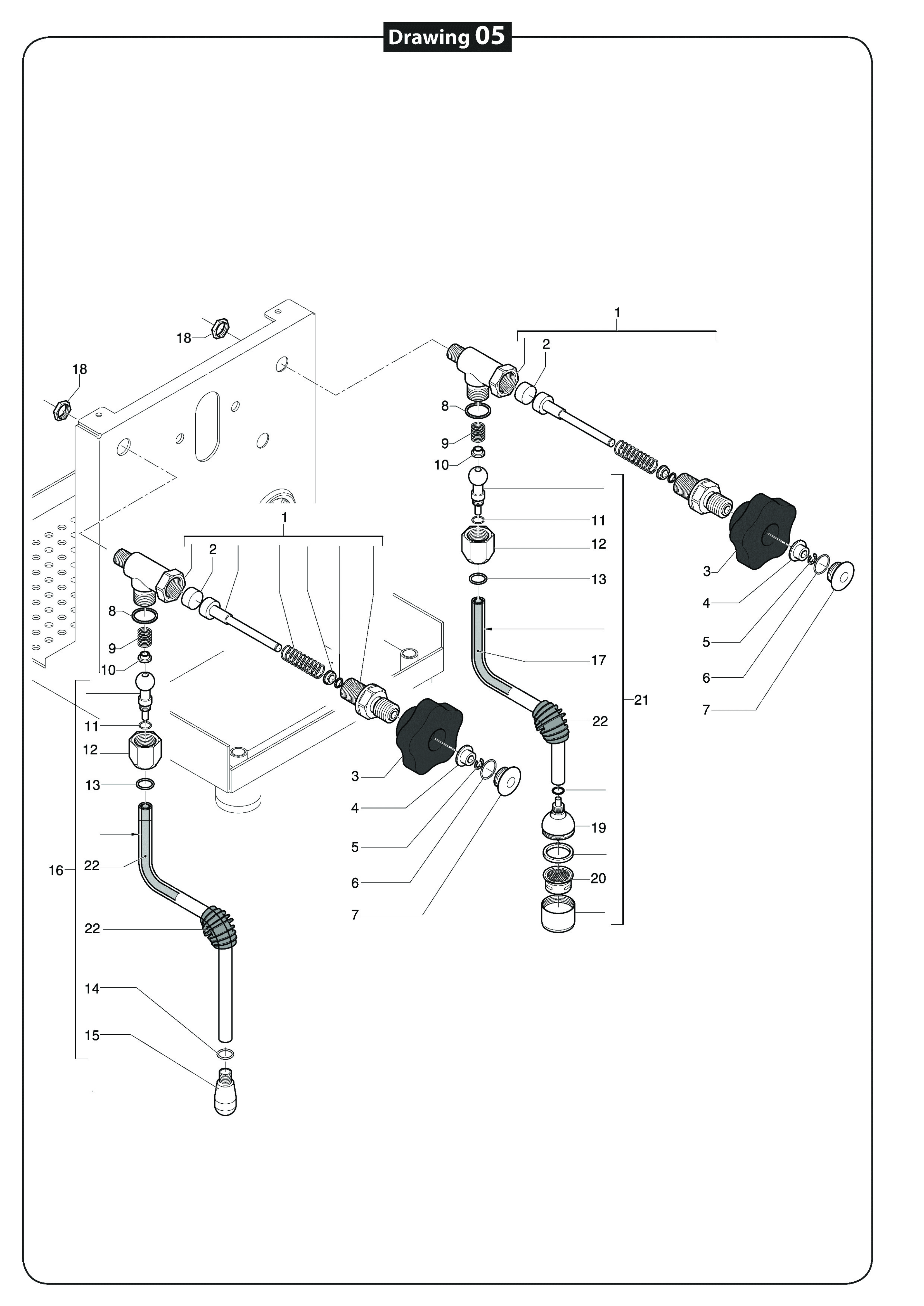

Pro 700 Exploded View - Steam, Water Valves



Position

Part number

Description

1

P8106

Valve steam/valve hot water

2

P8108

Valve steam/valve hot water (since 06/14)

2

P8106.1

Gasket valve spindle

3

P8107

Handle

4

P8105

Spacer valve

5

P8106.2

Circlip

6

P8111

Seal handle

7

P8103

Cover valve

8

P6015

Gasket nut-valve

9

B5471532

Spring steam-/hot water valve

10

B5220606

Ball steam-/hot water valve

11

B7496083

Gasket joint transition

12

C277700213

Nut steam-/hot water wand

13

B7496073

Gasket hexagon nut

14

B7496083

Seal steam nozzle

15

P2543

Steam nozzle 2 holes

15

P2542

Steam nozzle 4 holes

16

P2541

Steam wand no-burn

17

P2549

Silicon hose steam-/hot water wand

18

C329900682

Half nut 1/4"

19

C229900536

Sprayer

20

P6001.2

Aerator

21

P2540

Hot water wand no-burn

22

P8110

Isolation steam-/hot water wand
