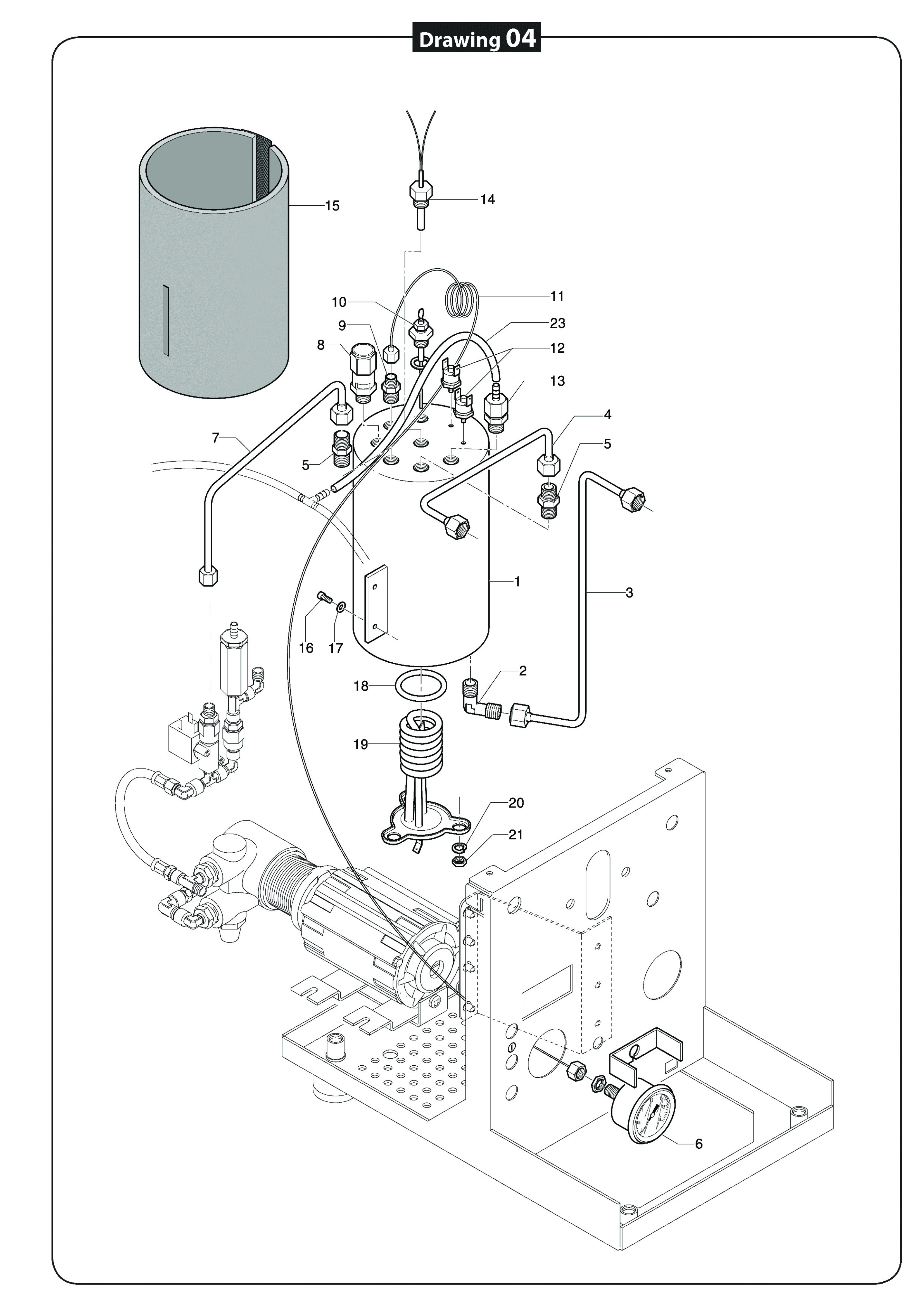

Pro 700 Exploded View - Steam Boiler, Gauge



Position

Part number

Description

1

P9232

Steam-/hot water boiler

2

C229900525

L-connector 1/4"M 1/4"M

3

P2523

Pipe hot water extraction

4

P2522

Pipe steam extraction

5

C229900520

Dowel 1/4" 1/4"

6

P2501

Boiler pressure gauge

7

P2521

Steam-/hot water boiler loading tube

8

C229900559

Safety valve 3/8"

9

C229900519

Dowel 1/4" 1/8"

10

C199900214

Level probe l=120

11

B7400902

Capillary tube boiler gauge

12

C199901550.1

Safety thermostat 145°C

13

P2561

Anti-vacuum valve with drain 1/4"

14

P6037

Temperature sensor 1/4" PT100

15

P7052

Isolation steam-/hot water boiler

16

P2006

Screw cylinder M4x10

17

P2009

Washer 4,3x9,0x0,8

18

P9013

Seal heating element steam-/hot water boiler

19

P7014.1

Heating element steam-/hot water boiler 230V 1400W

20

P2011

Spring ring 8,0

21

C309900127

Hexagon nut M8

23

C499900769

Silicone hose 8x5
