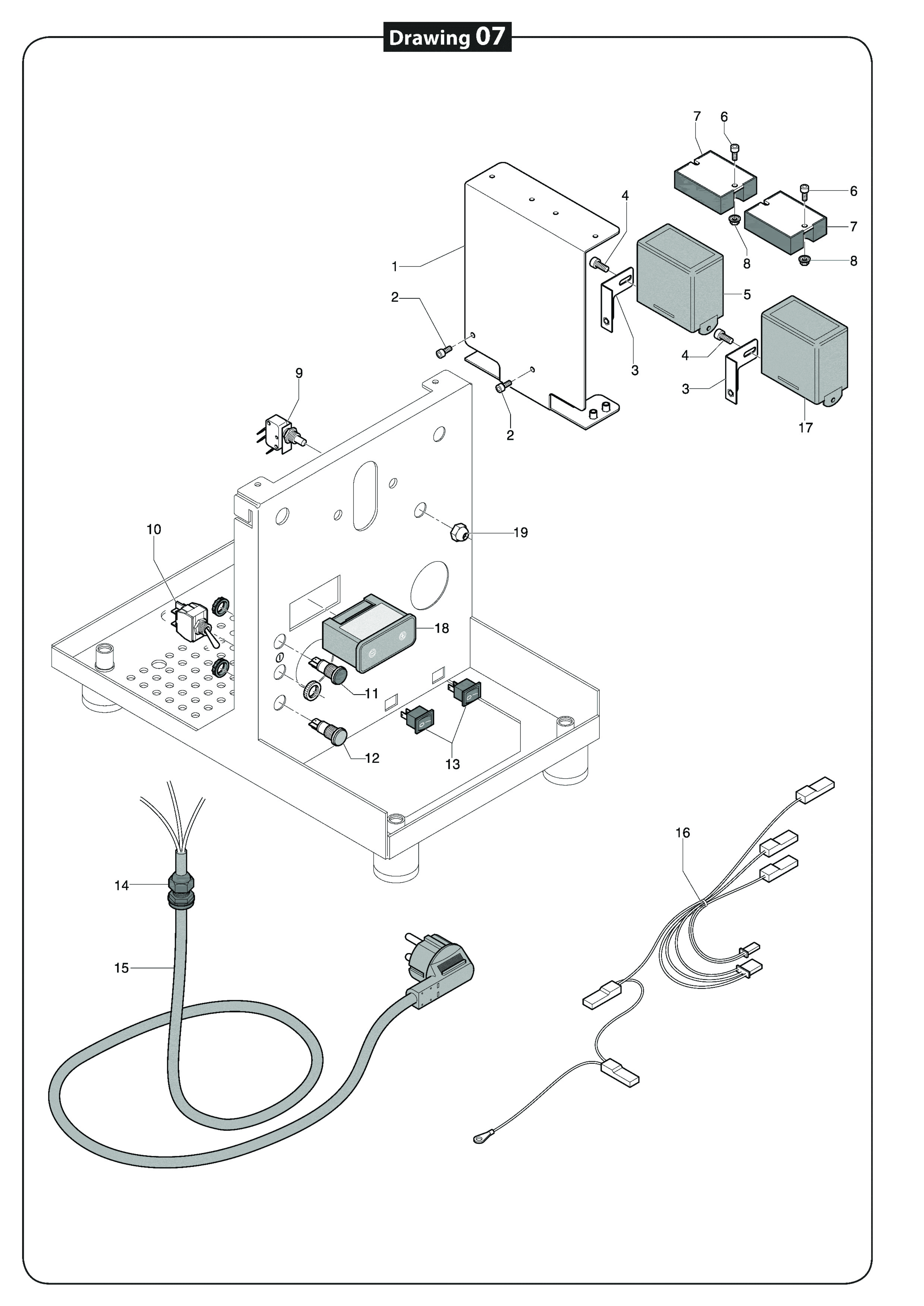

Pro 700 Exploded View - Controllers, Switches, Electrics

Position

Part number

Description

1

P2112

Holder relay/controlbox

2

P2006

Screw zylinder M4x10

3

P3005

Bracket control box

4

P2007

Screw zylinder M5x10

5

M2004

Controlbox 240V

6

P2006

Screw zylinder M4x10

7

P6031

Static relay

8

P2026

Nut M4

9

C199900306

Microswitch brewing group

10

C199900087

Bipolar switch lever

11

B7633618

Control lamp green

12

B7633617

Control lamp orange

13

P9114

Switch 0/1

14

P2070

Cable Fixing

14

P2071

Nut PG

15

P2036

Cable with AU plug

16

P2580

Cableloom

17

P6032

Power supply 240V

18

P6038

Thermo PID 3

18

P6041

Thermo PID 3 Australia

19

B5221875CM

Dado Micro Hex
