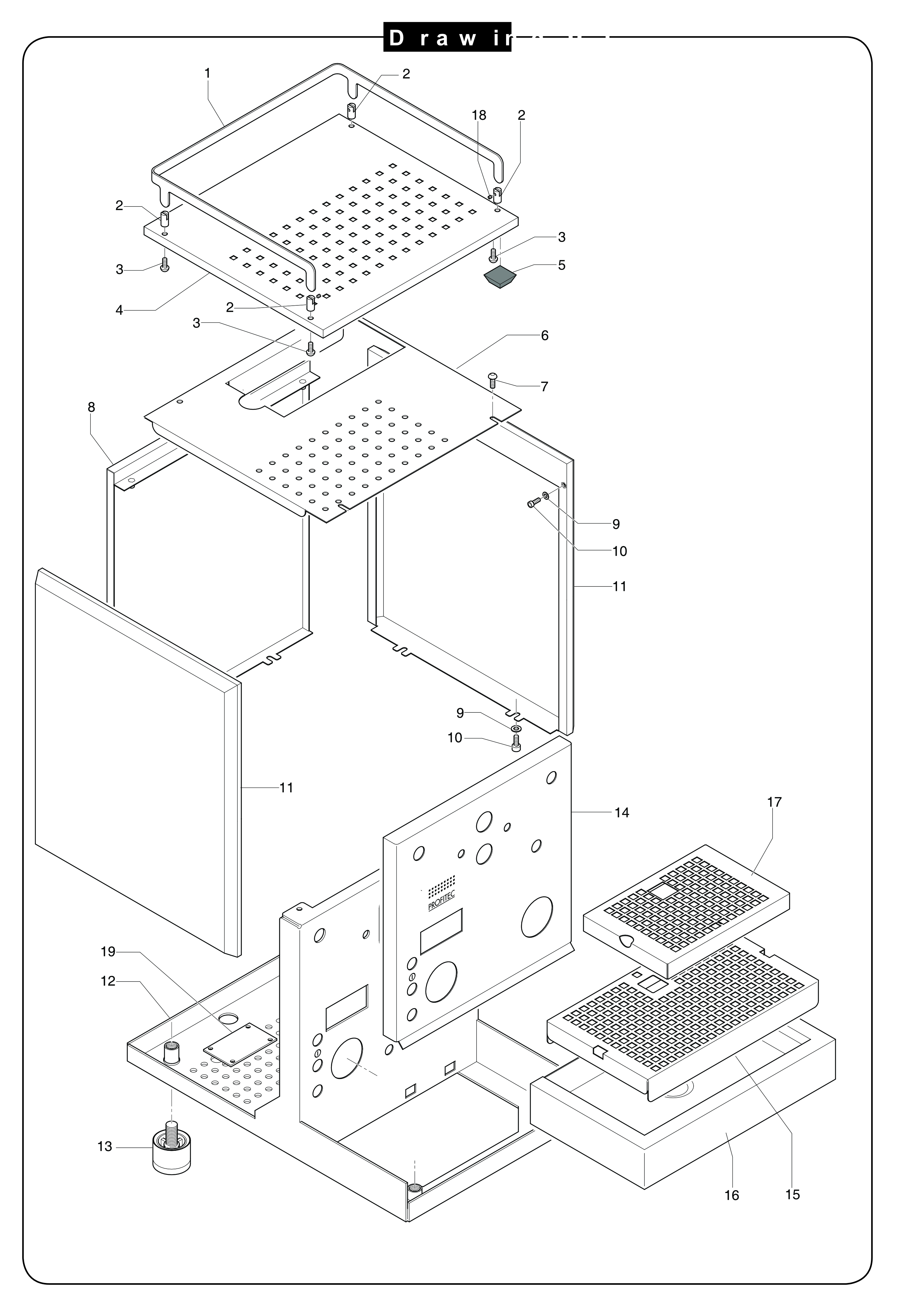

Pro 700 Exploded View - Chassis

Position

Part number

Description

1

P2115

Railing

2

P8104

Post reling

3

B7826212

Screw cylinder M4x6

4

P2118

Upper cup warming tray

5

B7474212

Adhesive foot for cup warming tray

6

P2119

Lower cup warming tray

7

P2022

Lens screw M4x10

8

P2116

Rear panel

9

P6100

Washer 4,3x12,0x1,0

10

P2006

Screw cylinder M4x10

11

P2117

Side panel left/right

12

P2110

Chassis

13

P7025

Foot h=30, M10

14

P2113

Front panel

15

P2114

Grid trip tray

16

P2111

Drip tray

17

P2122

Height grid

18

P6107

Headless screw M3x4

19

P2110.3

Chassis cover

20

P2063

Emblem Profitec
