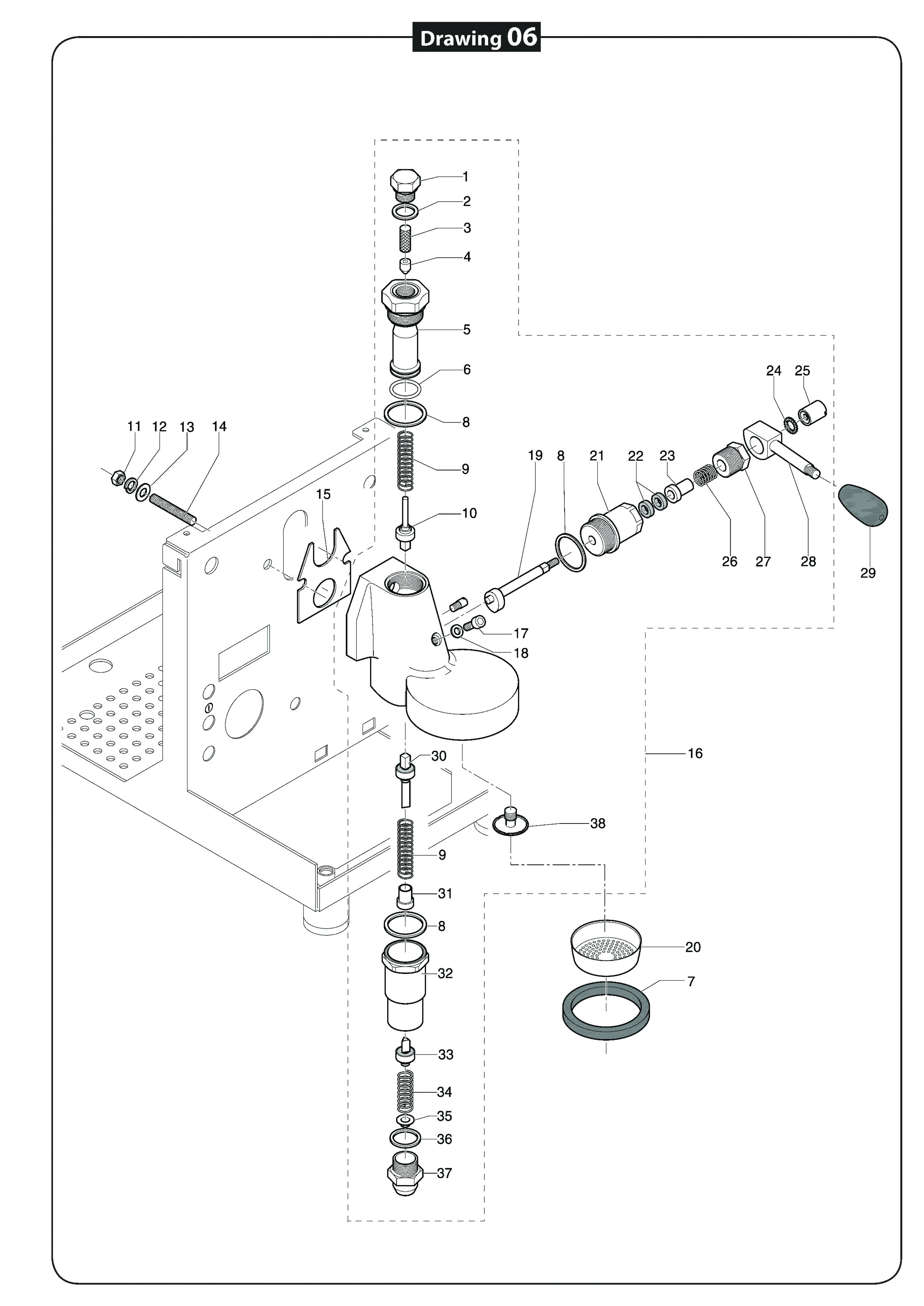

Pro 700 Exploded View - Brew Group



Position

Part number

Description

1

R000002141

Fitting group cylinder

2

C469900420

Gasket plug flow restrictor

3

C619900554

Filter gigleur

4

C229900549

Gigleur 0,8

5

C229901133

Upper sleave assy

6

C469900422

Gasket socket brew group

7

P1010

Group gasket h=8,0

7

P1014

Group gasket h=8,5

8

C469900421

Teflon gasket 35x30x2

9

C219900423

Spring upper/middle

10

C219900424

Valve group E61 upper

11

C309900127

Hex nut M8

12

P2011

Spring ring 8,0

13

P2010

Washer 8,4x16,1,6

14

C309900131

Allen screw M8x31

15

C449900767

Housing gasket brew group

16

P1011

Brewing group complete (without group le

17

C309900164

Screw cylinder M6x10

18

C469901132

Teflon gasket 10x6x1

19

C219900425

Axis brewing group

20

C519900103

Shower screen

21

R000002142

Flange

22

C219900426

Washer axis brewing group

23

R000002143

Connector

24

B7479947

Lock washer 8,0

25

R000002146

Bolt lever

26

C219900427

Spring axis group

27

R000002144

Screw joint axis group

28

R000002145

Lever axis group with bolt

29

C439900840

Lever knob M8

30

C219903081

Valve group E61 middle

31

B7479942

Spring guide group

32

C229901165

Sleeve assembly

33

C219900430

Valve group E61 lower

34

C219900431

Spring lower

35

R000002148

Sprayer lower

36

C469900783

Teflon gasket 26x21x2

37

R000002149

Lower discharge group

38

C229901128

Sprayer brew group
