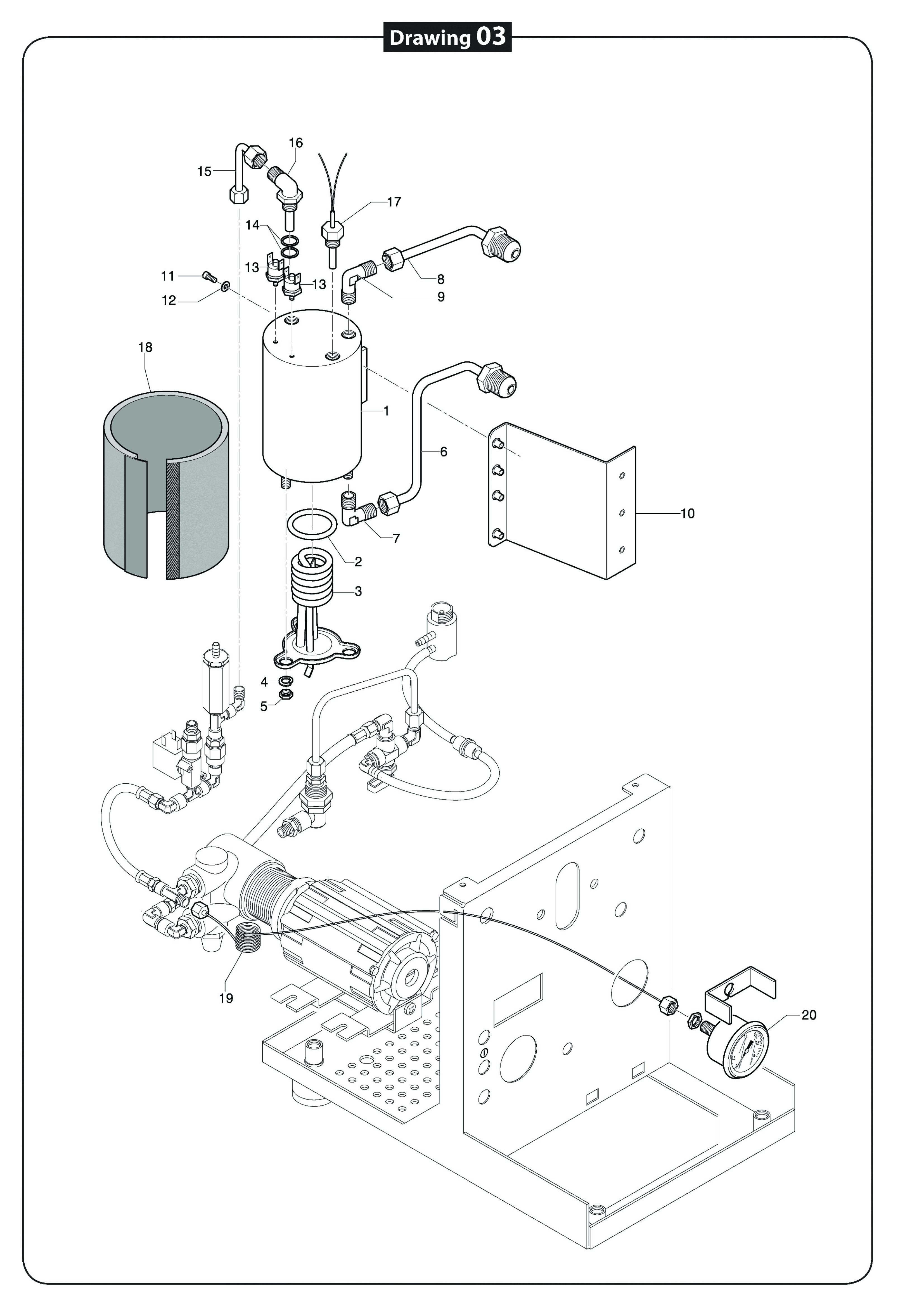

Pro 700 Exploded View - Brew Boiler, Gauge



Position.

Part number

Description

1

P9012

Coffee boiler

2

P9013

Seal heating element coffee boiler

3

P9011

Heating element coffee boiler 230V

1200W

4

P2011

Spring ring 8,0

5

C309900127

Hexagon nut M8

6

P2525

Return pipe brewing group

7

P9015

L-connector 1/8"M 1/4"M

8

P2524

Inlet pipe brewing group

9

C229900525

L-connector 1/4"M 1/4"M

10

P2121

Boiler holder

11

P2006

Screw cylinder M4x10

12

P2009

Washer 4,3x9,0x0,8

13

C199901550.1

Safety thermostat 145°C

14

P2045

Copper seal

15

P1904

Coffee boiler loading tube

16

P2040

Ellbow

17

P6037

Temperature sensor 1/4" PT100

18

P7051

Isolation coffee boiler

19

P6051

Capillary tube pump pressure gauge

20

P2500

Pump pressure gauge
