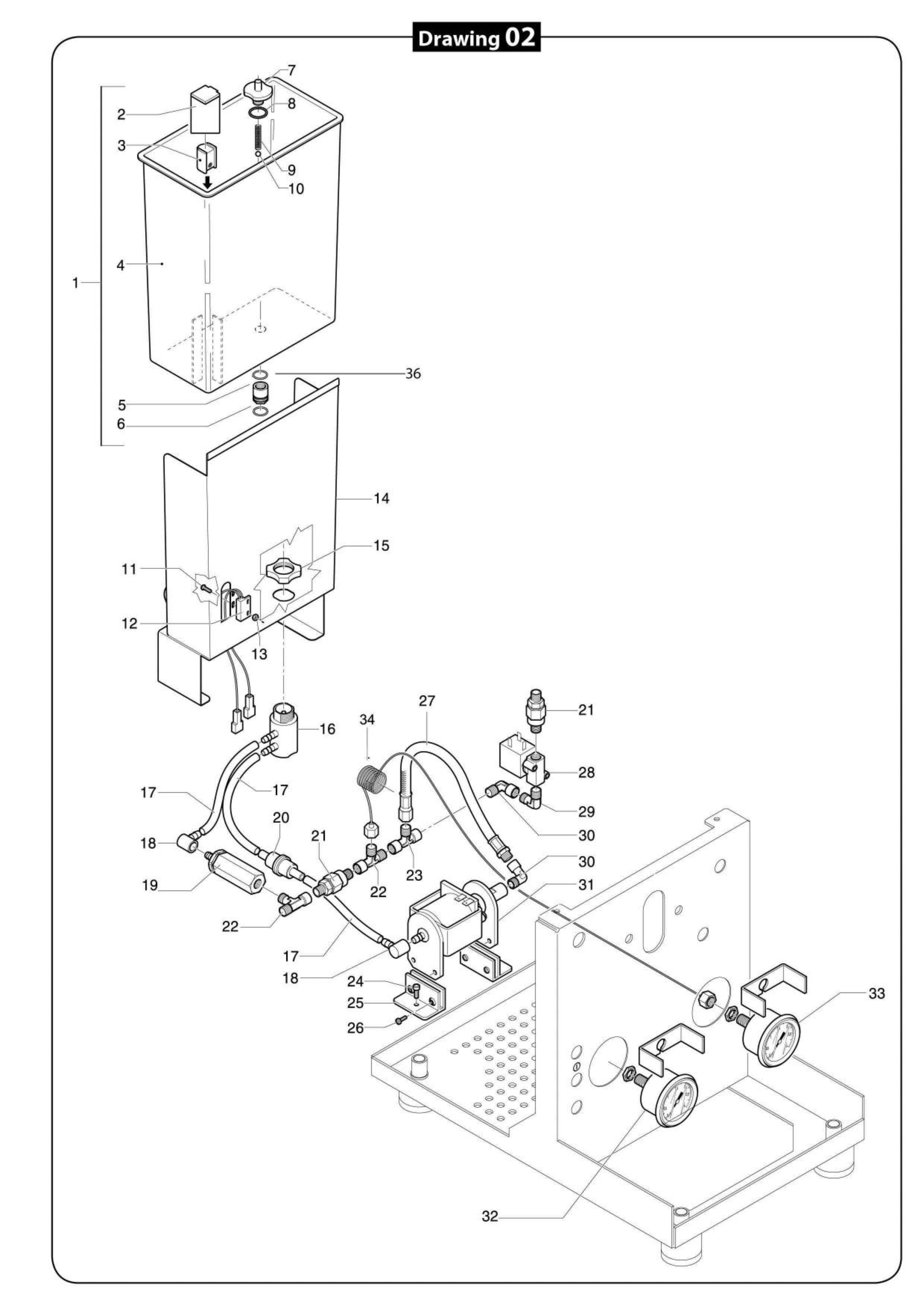

Pro 500 Exploded View - Water Tank, Pump, Gauges

Position

Part number

Description

1

P9010K1.KW

Water tank with guide rail reed complete

2

P6016.W

Water tank plug

3

P6021

Reed swimmer

4

P9010.W

Water tank

7

P6020.KW1

Water tank adapter no1 plastic

5

P6020.KW2

Water tank adapter no2 plastic

6

B7496076

Seal OR 112

8

P6020.3

Seal

9

P6023

Spring water tank

10

B5471509

Ball 7/32"

11

P2021

Screw lens M3x10

12

P6022

Reed sensor

13

P2019

Nut M3

14

P2105

Eater tank guide rail

15

P6020.KW3

Nut M20 water tank plastic no3

16

P6020.KW4

Fitting water tank M20 no4 plastic

17

C499900769

Silicone hose 8x5 ; 1m

18

C449900709



19

C229900911

Expansion valve

20

C439900695

Filter for silicone hose

21

C229900548

Recoil valve 1/8" MM

22

C229900644

T-connector 1/8" MMF

23

C229900703

T-connector 1/8" MMF

24

P2007

Screw cylinder M5 x 10

25

P3006.K

Bracket for the pump plastic

26

P3019

Screw for bracket

27

P8012

Metal hose Flex 17 cm 1/8M 1/8F

28

C199900275

Solenoid valve 230 V 2 ways 1/8-1/8

28

US1005

Solenoid valve 110 V 2 ways 1/8-1/8

29

C229900579

L-connector 1/8M 1/8M

30

P9014

L-connector 1/8M 1/8F

31

C249900770

Bracket for the pump

32

P2501

Boiler pressure gauge Profitec

33

P2500

Pump pressure gauge Profitec

34

P6051

Capillary tube pump p. gauge 1m 1/8"-1/8

36

P6020.KW

Adapter complete
