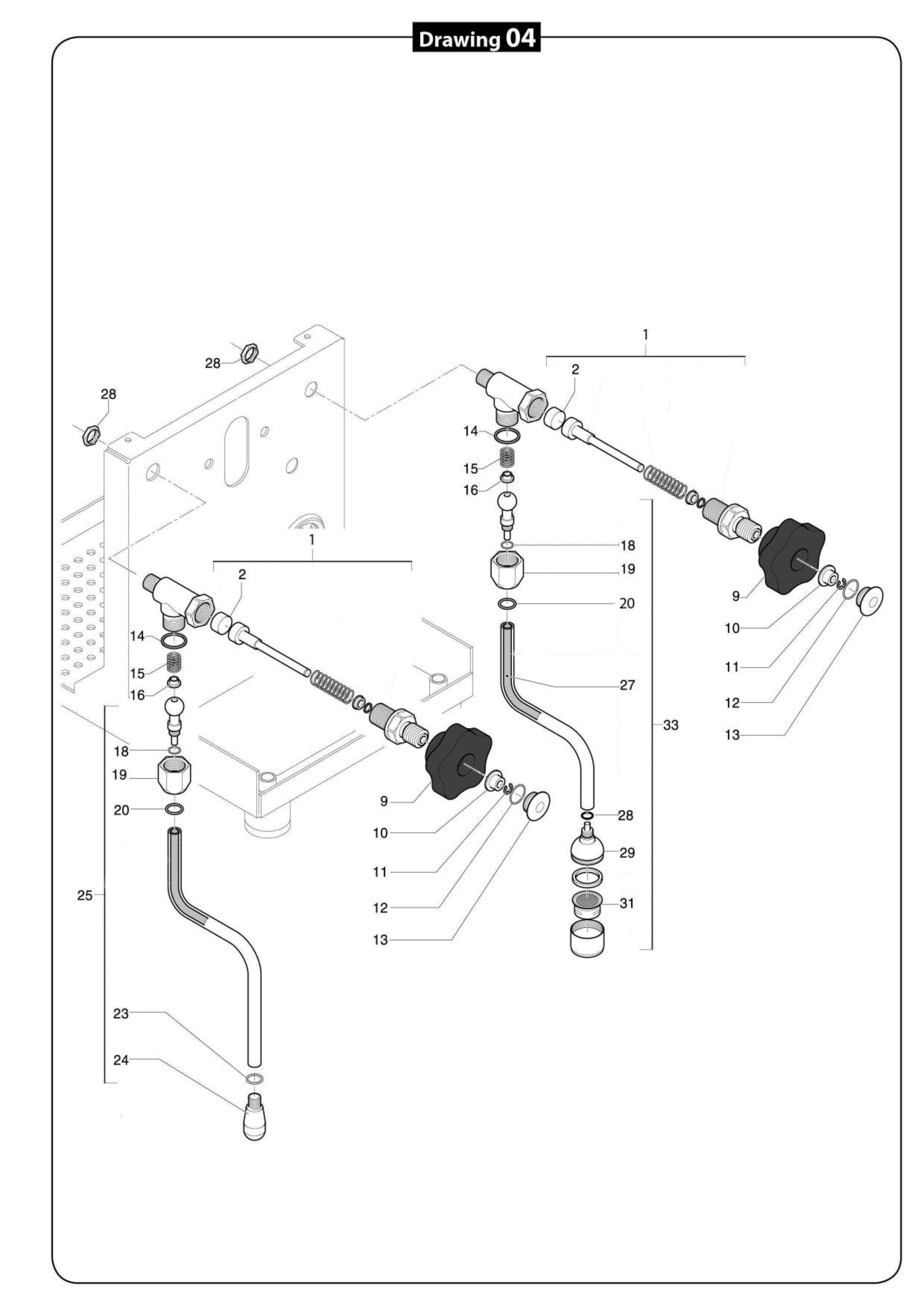

Pro 500 Exploded View - Steam, Water Valves

Position

Part number

Description

1

P8106

Steam /hotwater valve

2

P8106.1

Seal valve silicon

9

P8107

Handle hot water/steam

10

P8105

Spacer for valve

11

P8106.2

circlip

12

P7008

Seal handle

13

P8103

Cover valve

14

P6015

Teflon gasket for valve

15

B5471532

Spring steam/hot water valve

16

B5220606

Ball steam/hot water valve

18

B7496083

Seal OR steam nozzle

19

C277700213

Nut steam/hot water wand

20

B7496073

Seal OR 115 EP856

23

B7496083

Seal OR steam nozzle

24

P2542

Steam nozzle 4 holes

25

P2541

Steam wand "no-burn"

27

P2549

Silicon hose

28

C329900682

Nut (half) 1/4"

29

C229900536

Sprayer

31

P6001.2

Aerator

33

P2540

Hot water wand "no-burn"
