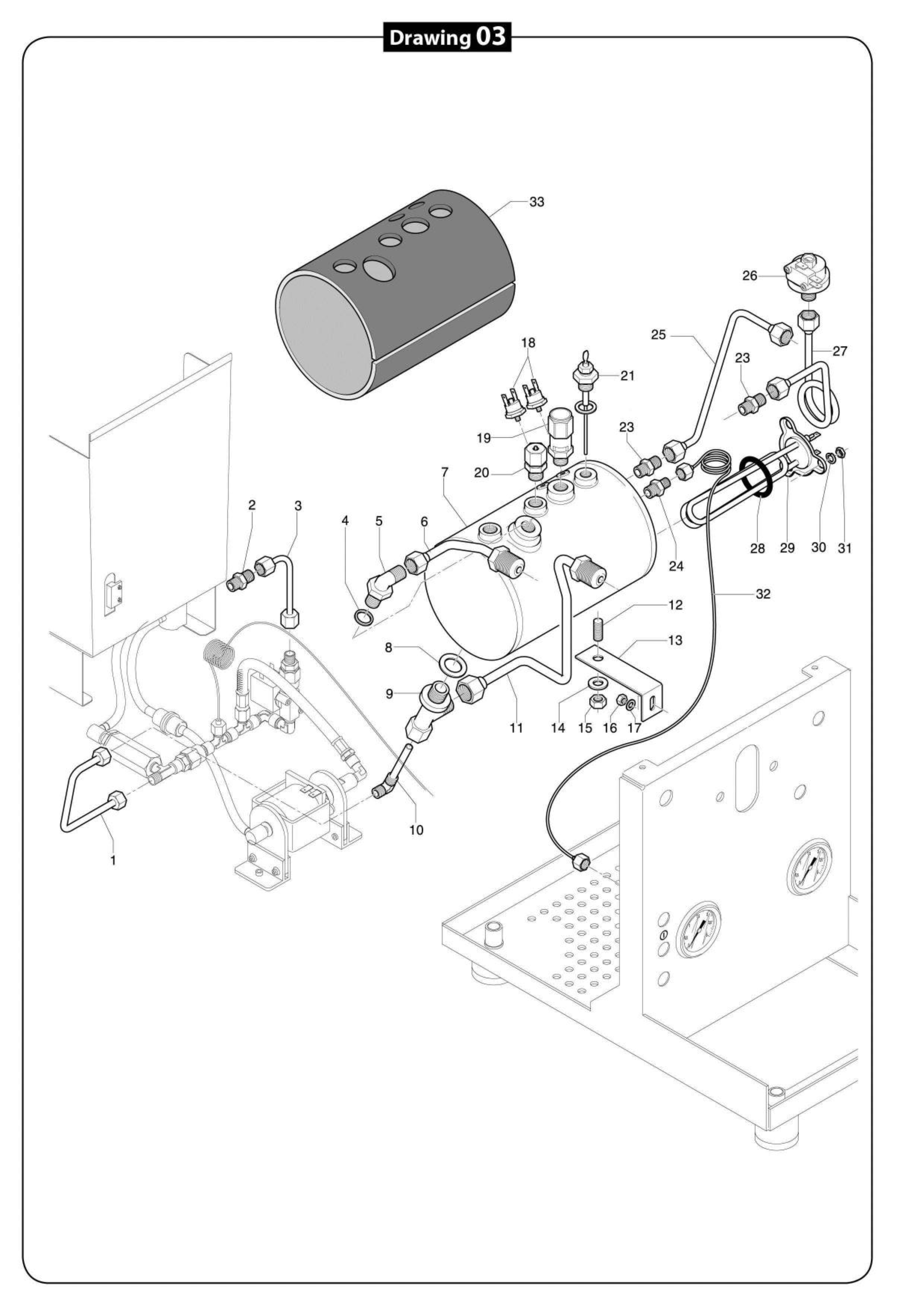

Pro 500 Exploded View - Boiler

Position

Part number

Description

1

P2515

Downtake tube

2

C229900520

Dowel 1/4"- 1/4"

3

P1904

Boiler loading tube

4

P2049

Copper gasket 1/4" heat exchanger

5

P2040

Angle boiler/heat exchanger 1/4"

6

P1900

Entry pipe group

7

P7014.2

Boiler Inox Heat exchanger

8

P2045

Copper gasket 3/8" heat exchanger

9

C229900740

Connection injection pipe

10

C229900393

Injection pipe

11

P1901

Pipe return flow group

12

P6104

Threat pin M8 x 16 VA flat

13

P3003.1

Boiler bracket

14

P2010

Washer 0 8

15

C309900127

Hex nut M8

16

P6102

Nut M5

17

P2043

Washer D5,3

18

C199901550

Safety thermostat 135 C

19

C229900559

Safety valve 3/8"

20

C219900561

Vacuum valve long

21

C199900839

Fill lever probe L: 80 mm

23

C229900520

Dowel 1/4"- 1/4"

24

C229900519

Dowel 1/4" 1/8"

25

P1903

Hot water wand

26

C199900294

Pressure switch

27

C229901576

Copper pipe pressure switch

28

P9013

Seal heater

29

P7014.1

Heating 240 V 1400W

29

US1000

Heating 110 V 1400W

30

P2010

Washer 0 8

31

C309900127

Hex nut M8

32

B7400902

Capillary tube boiler

33

P7050

Boiler insulation
