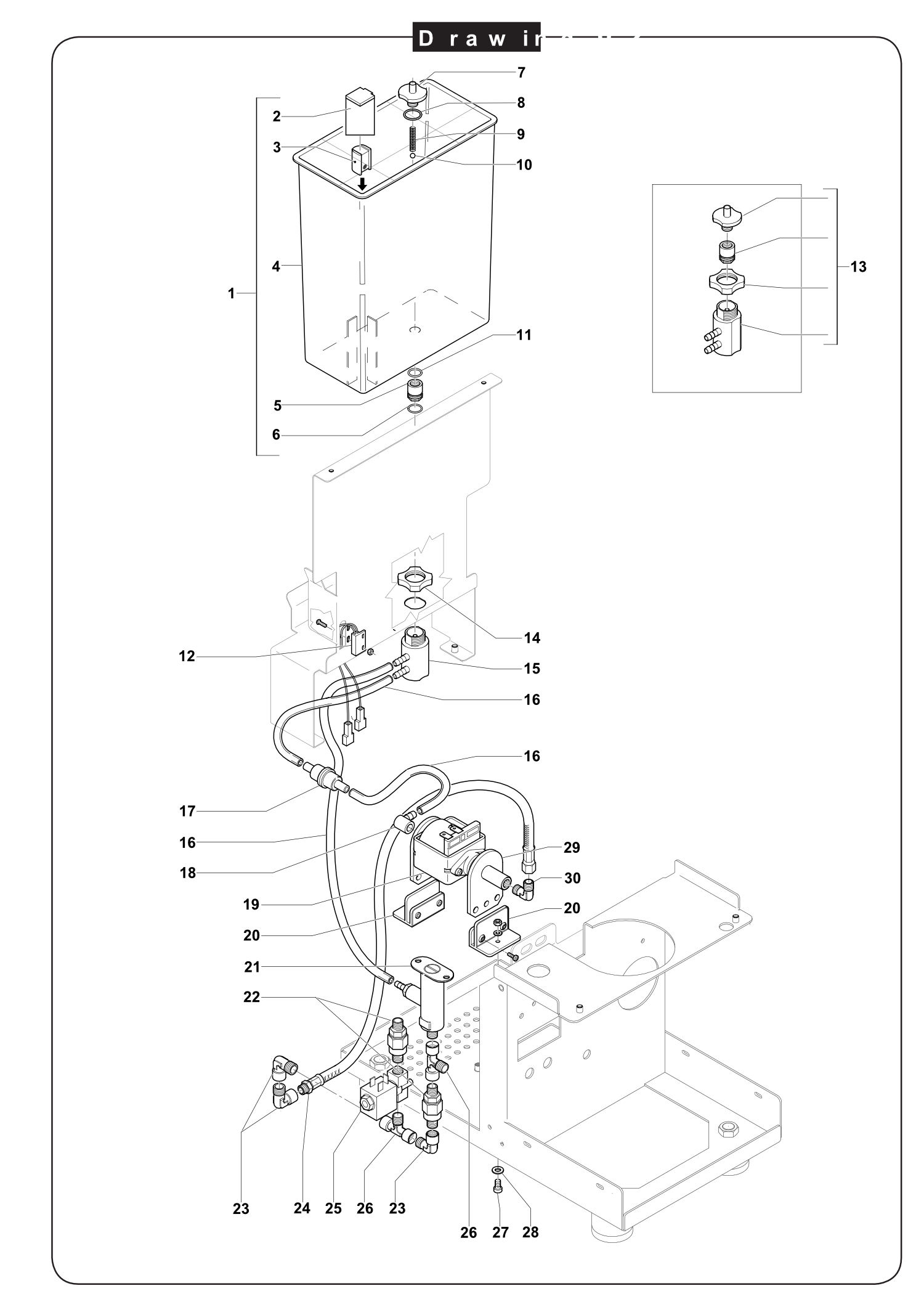

Pro 300 Exploded View - Water Tank, Pump

Position

Part number

Description

1

P9010.K1

Water tank with guide rail reed complete

2

P6016

Water tank plug

3

P6021

Reed swimmer

4

P9010

Water tank

5

P6017

Water tank adapter, lower, stainless steel

6

B7496076

Seal OR 112

7

P6020

Water tank adapter, upper, stainless steel

8

P6020.3

Seal

9

P6023

Spring water tank

10

B5471509

Ball 7/32"

11

P6025

Gasket for water tank adapter

12

P6022

Reed sensor

13

P6020.NK

Water tank adapter new complete

14

P6020.K3

Nut M20 water tank plastic

15

P6020.K4

Fitting water tank M20 plastic

16

C499900769

Silicone hose 8x5; 1 m

17

C439900695

Filter for silicone hose

18

C449900709

Pipette expansion valve

19

C199900286

Vibration pump Ulka EX5 220V/50Hz

48W

19

US1001

Vibration pump Ulka EX5 120V/60Hz

52W

20

P3006.K

L-Bracket for pump, plastic

21

P2555.K

Expansion valve

22

C229900548

Recoil valve 1/8" MM

23

P9014

L-connector 1/8"M 1/8"F

24

P8012

Metal hose flex 1/8"M 1/8"F, 17 cm

25

C199900275

Solenoid valve 230V 2 ways 1/8 1/8

25

US1005

Solenoid valve 110V 2 ways 1/8-1/8

26

E2113001

T-connector 1/8" MFF

27

P2006

Screw cylinder M4x10

28

P6100

Washer 4,3x12,0x1,0

29

C249900770

Bracket for pump

30

P9015

L-connector 1/8"M 1/4"M
