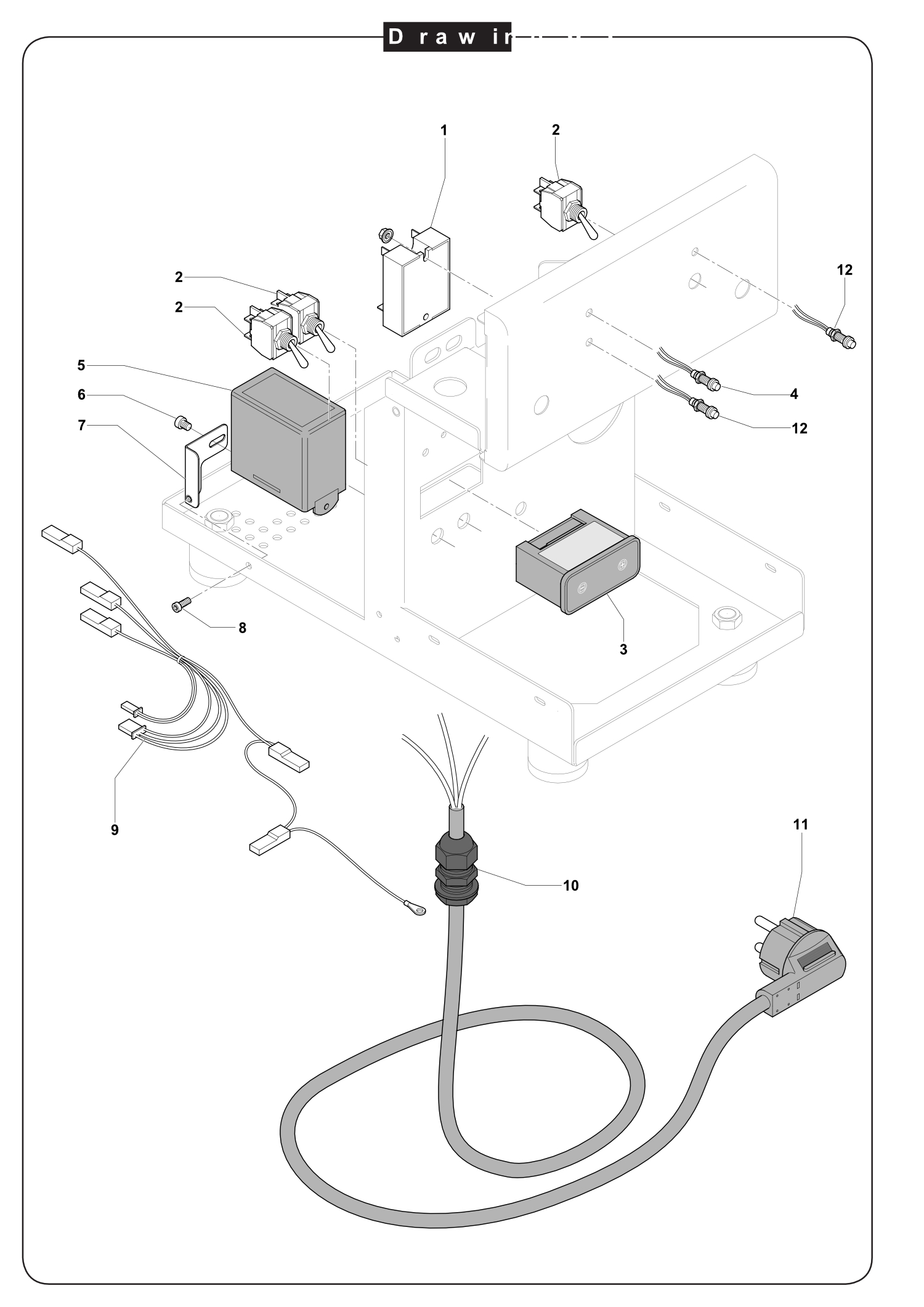

Pro 300 Exploded View - Controllers, Switches, Electrics

Position

Part number

Description

1

P6031

Static relay (45,7x58,6x26,5mm)

2

C199900087

Bipolar switch lever

3

P6035

Thermo PID 1 230V

US1041

Thermo PID 1 115V

4

P9109

Control lamp green

5

M2004

Controlbox 240V

US1004

Controlbox 115V

6

P2007

Screw zylinder M5x10

7

P3005

Bracket control box

8

P2006

Screw zylinder M4x10

9

P2582

Cableloom

10

P2070

Cable Fixing with hexagon nut

11

P2036

Cable with AU plug

12

P9108

Control lamp orange
