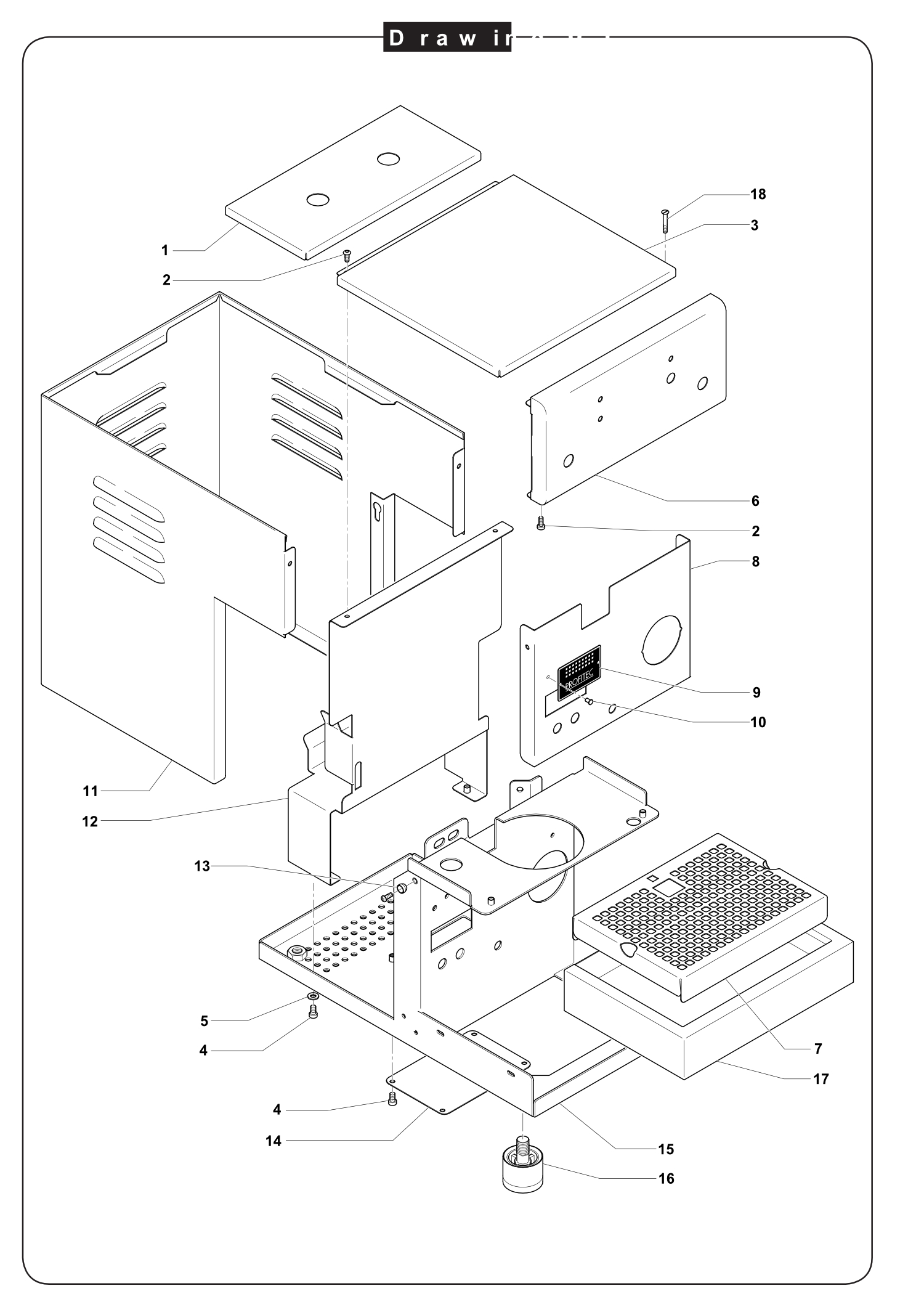

Pro 300 Exploded View - Chassis

Position

Part number

Description

1

P2135

Cover water tank

2

P2022

Lens screw M4x10

3

P2132

Cup warming tray

4

P2006

Screw cylinder M4x10

5

P6100

Washer 4,3x12,0x1,0

6

P2131

Front panel upper

7

P2134

Grid trip tray

8

P2130

Front panel lower

9

P2063

Emblem Profitec

10

P1998

Blind rivet struss Head 2,4x12

11

P2133

U-housing

12

P2128

Eater tank guide rail

13

B5220818.1

Brass bushing

14

P2127

Chassis cover

15

P2126

Chassis

16

P7025

Foot h=30, M10

17

P9003

Drip tray

18

B7819911

Lens screw M4x25
