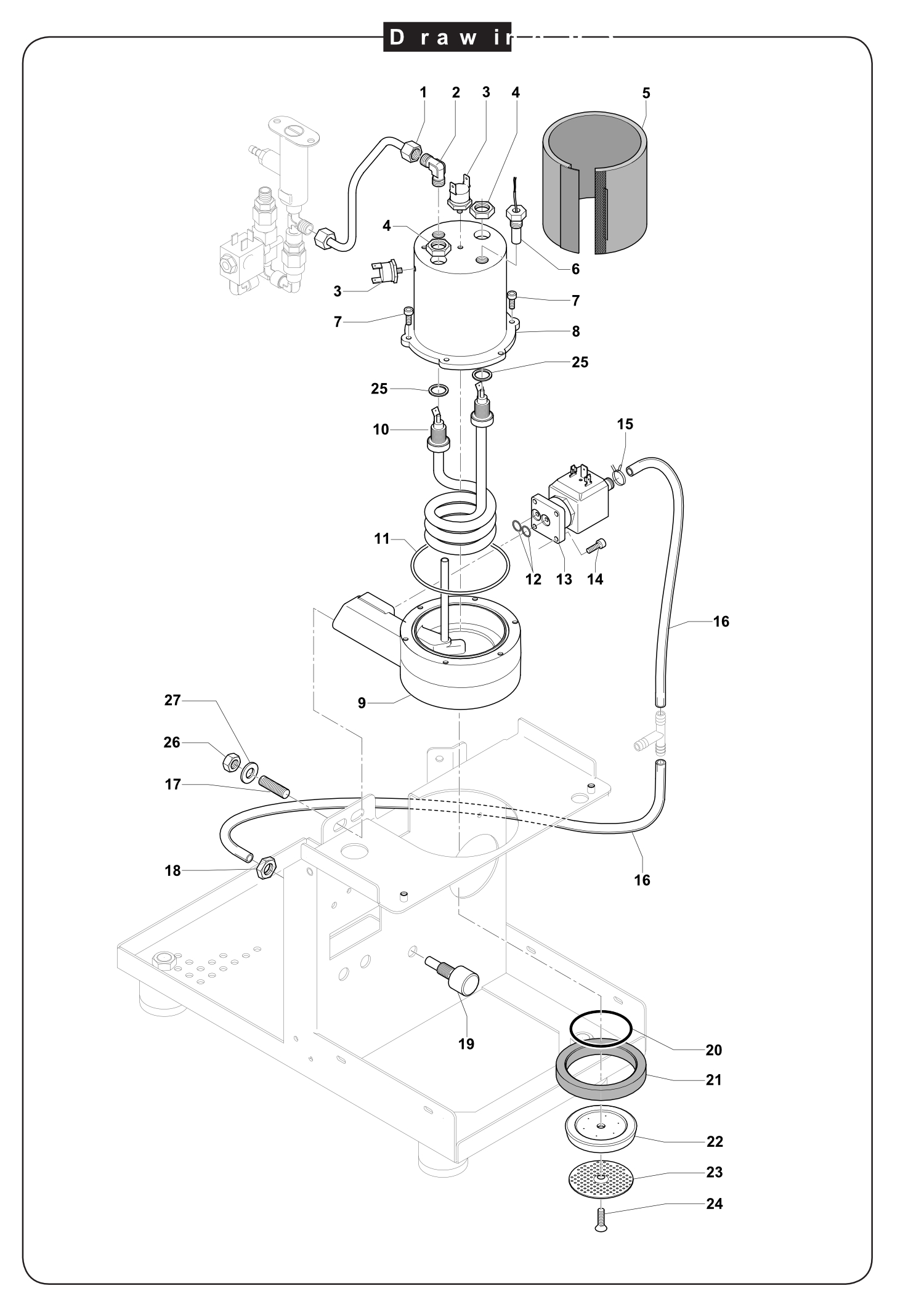

Pro 300 Exploded View - Brew Boiler, Group

Position

Part number

Description

1

P2512

Coffee boiler loading tube

2

C229900579

L-connector 1/8"M 1/8"M

3

C199901550.1

Safety thermostat 145°C

4

C329900682

Half nut 1/4"

5

P7060

Isolation coffee boiler

6

P6036

Temperature sensor 1/8"

7

P2006

Screw cylinder M4x10

8

P2042.4

Coffee boiler

9

P2042.1

Brewing Group

10

P2042.9

Heating element coffee boiler 230V

1200W

US1056

Heating element coffee boiler 110V

800W

11

P2042.2

Seal coffee boiler

12

C449900786

Gasket solenoid valve

13

C199900226

Solenoid valve 230V 3 ways

US1014

Solenoid valve 110V 3 ways

14

P2006

Screw cylinder M4x10

15

P1997

Clip silicone tube

16

C499900769

Silicone hose 8x5

17

C309900131

Allen screw M8x31

18

P6103

Half nut M10

19

C227700898

Discharge nozzle

20

C449900790

Gasket shower

21

C449900230

Group gasket h=7,8

22

C529900550

Fitting shower

23

C519900102

Shower

24

C319900134

Screw countersunk M5x10

25

C449901227

Seal heating element coffee boiler

26

C309900127

Hex nut M8

27

P2011

Spring ring 8,0

o.N.

P2042

Brew group with boiler and heating element, 230 V
