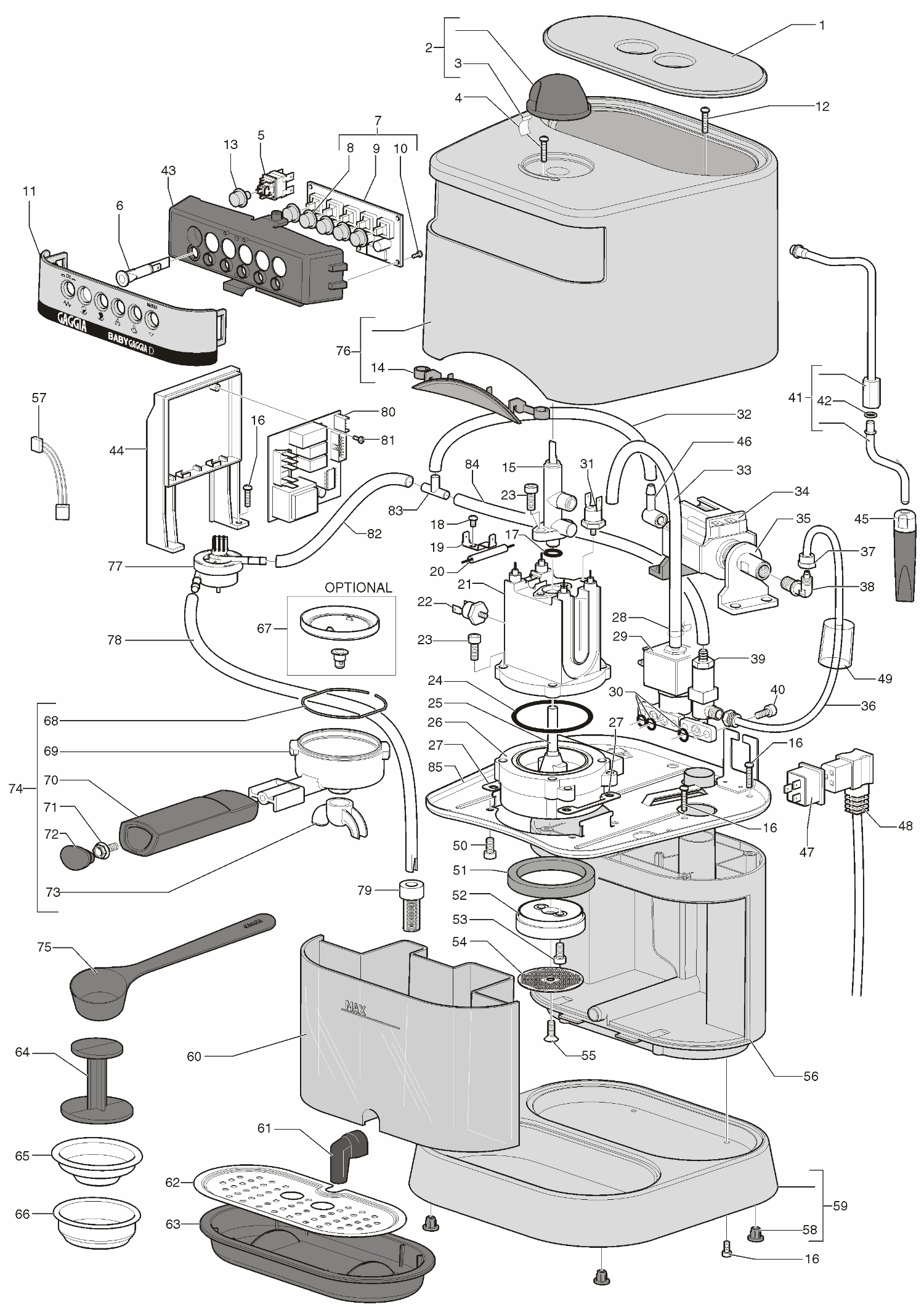

Baby Dosata Exploded View (2004) - Complete
Position | Part number | Description |
1 | B0130 | Tank Lid |
2 | B0185/A | Steam-Knob Assembly |
3 | DM0814 | Knob Clip |
4 | DI7981P3,5x16Z | Thread-forming Ø 3,5 X 16 Steel Galvan Screw |
5 | 5317001000 | Switch ON/OFF |
6 | 5317002000 | Signal light |
7 | 8317003000 | Keypad Unit Assembly |
8 | §229140808 | Keypad Key G6000 Chrome |
9 | 4317002000 | Keypad Unit without Keys |
10 | DI7981P2,9X6,5Z | Screw 2,9x6,5 Galvanized |
11 | 8317001000 | Silver jig with black strip |
12 | DI7981P3,5x19I | Thread-forming Ø 3,5 X 19 Stainless Steel Screw |
13 | 6317005000 | Switch Button ON/OFF Chrome |
14 | 6301001000 | Silver Head-Guard |
15 | B0153/A | Complete cock |
16 | DI7981P4,2x16Z | Thread-forming Ø 4,2 X 16 Steel Galvan Screw |
17 | DM0041/081 | OR 112 Gasket |
18 | DM1957 | M 4X5 Steel Zinc Screw |
19 | GG0064 | Thermo-Fuse Clamp |
20 | DM1040 | Thermo-Fuse |
21 | EF0030/A | Boiler Unit |
22 | DM1168 | Coffee Thermostat 107°C |
23 | UN5931 6x16Z | M6X16 steel Galvanized Screw |
24 | DM0041/082 | OR 167 Gasket |
25 | B0181 | Copper Pipe |
26 | B0171 | Unit Body |
27 | 4301004000 | Insulating Gasket |
28 | DM2069 | Hose clamp |
29 | DM1645/001 | 220-230V~ 50Hz Solenoid Valve |
30 | DM1645/002 | 120V~ 60Hz Solenoid Valve |
31 | DM0041/022 | OR 2025 Gasket |
32 | DM1288 | Steam Thermostat 145°C |
33 | DM1206/009 | Pipe 5x9x140 |
34 | B0159 | Solenoid Valve for Exhaust-Pipe |
35 | B0225/A/230240 | 230V 50 Hz Pump |
36 | DM1792/120 | 120V 60 Hz Pump with Thermostat |
37 | DY0003 | Pump Support |
38 | B0195 | Pump-delivery Pipe |
39 | B0053 | Nut |
40 | B0052 | Input Connector |
41 | 8301003000 | Overpressure Valve Assembly |
42 | UN5931 5x12Z | M5X12 steel zinc Screw |
43 | B0241/A | Steam-Pipe Assembly |
44 | DM0041/088 | OR 2025 Gasket |
45 | 4301005000 | Switches Support |
46 | 4317007000 | Bracket Electronic Control Unit |
47 | 8301006000 | Assembly “Pannarello” Frother |
48 | DM1596 | Pump Suction Connector |
49 | DM1563 | Three-Pole Self-Locking Plug |
50 | DM1563/001 | Two-Pole Self-Locking Plug 120V |
51 | CF0292/SCH | SCHUKO Plug |
52 | B0196 | Safety Rubber Device |
53 | UN5931 5x12I | Stainless steel M5X12 Screw |
54 | NG01/001 | Underpan Gasket |
55 | DY0036/A | Shower Disc-Holder assembly |
56 | UN5931 6x12I | Stainless steel M6X12 Screw |
57 | DM0704 | Shower Disc |
58 | DI7987-5x8I | Stainless Steel M5x8 Screw |
59 | 4301002000 | Main body |
60 | 4317018000 | Wiring Volumetric Doser |
61 | FG0245 | Foot |
62 | 8301008020 | Silver Lower body and Feet Assembly |
63 | B0173 | Water Tank |
64 | B0164 | Fitting For Outlet Overpressure |
65 | B0166 | Grid |
66 | B0093 | Drip Tray |
67 | 2PR/1 | Coffee Tamper |
68 | NF08/002 | 5,5-6,5 grs. 1 cup filter |
69 | NF08/005 | 12-14 grs. 2 cups filter |
70 | GG0138/01/A | Optional Emulsifiyng Disk |
71 | 18G1514 | Spring |
72 | 6301002000 | Filter Holder |
73 | RE0002 | Filter holder handle |
74 | DM1319 | Hexagon head cap screw |
75 | RE0015 | Cap for filter-holder handle |
76 | 6301004010 | Metal Twoway spout |
77 | 8301005010 | Filter holder assembly |
78 | DM1017 | 7 Grs. Measuring Spoon |
79 | 8301012020 | Silver Upper Body + Silver Head-Guard Assembly |
80 | 5317005000 | Volumetric Doser |
81 | B0157/01 | Suction Pipe |
82 | DM1806/01 | Filter Water Tank |
83 | 5317003000 | Electronic Control Unit |
84 | DI7981P2,9X6,5Z | Screw 2,9x6,5 Galvanized |
85 | DM1206/014 | Pipe 5x9x45 |
